CSM2F-8518-L050J20, Bourns Plate Shunt, 849 A Max, 42mV Output, 0.05 Accuracy, Шунт

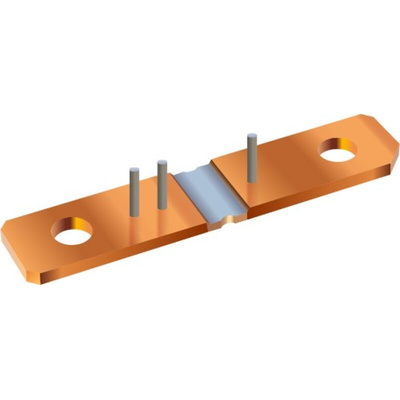

The Bourns CSM2F-8518 series High power shunt resistor comes with sense pins and bare copper terminals. It can be used in different types of applications such as battery management systems, current sensing for hybrid and electric vehicles, current sensing in bus bars, current sensing in welding equipment, etc. The shunt offers a resistance of 50 μΩ and has a resistance tolerance of ±5 %. The operating temperature ranges from -40 °C to +170 °C and the temperature coefficient of resistance is ±100 ppm/°C. It is a AEC-Q200 and RoHS compliant product.

Up to 36 W permanent power
Excellent long-term stability
High pulse power rating
Maximum fastening torque of 25 Nm

Datasheet - CSM2F-8518-L050J20
