CSM2F-8536-L025J30, Bourns Plate Shunt, 1.414 kA Max, 35mV Output, 0.05 Accuracy

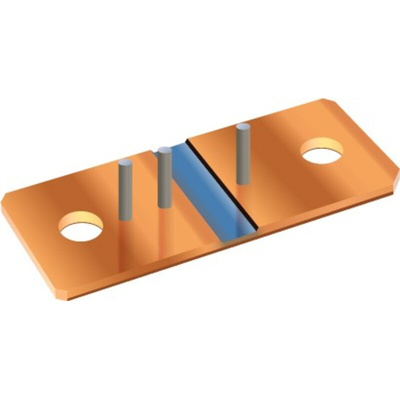

The Bourns CSM2F-8536 series High power shunt resistor comes with sense pins and bare copper terminals. It can be used in different types of applications such as battery management systems, current sensing for hybrid and electric vehicles, current sensing in bus bars, current sensing in welding equipment, etc. The shunt offers a resistance of 25 μΩ and has a resistance tolerance of ±5 %. The operating temperature ranges from -40 °C to +170 °C and the temperature coefficient of resistance is ±100 ppm/°C. It is a AEC-Q200 and RoHS compliant product.

Up to 50 W permanent power
Excellent long-term stability
High pulse power rating
Maximum fastening torque of 25 Nm

Datasheet - CSM2F-8536-L025J30
