SJ5023 BLACK, 3M Tapered Square PUR Self Adhesive Feet, 20.5mm diameter x 7.6mm height

Adhesive Bumpers

The 3M range of Bumpon protective moulded shapes are pressure-sensitive, adhesive-backed polyurethane products, offering a high friction coefficient and fast application. The Bumpon range can be used as feet, stops, spacers, and protectors in many applications. These 3M protective bumpon's are made from urethane, a resilient and durable elastomer. The pressure sensitive adhesive is protected with a release liner which allows easy application.

Features and Benefits

• Excellent skid resistance
• Non conductive
• Long aging resiliency – will not crack or harden
• Abrasion resistance
• Resistance to marring and staining

Application

• Feet on the bottom of small appliances, handheld electronic devices, telephones, keyboards, scales, clocks and computers.
• Stops for cabinet doors, lids and drawers.
• Spacers for picture frames to provide alignment and electronic/automotive applications.
• Protectors to prevent damage during shipping.

3M Bumpons can be used anywhere to avoid slamming, scratching, nicking, scuffing, marring, sliding, vibration and noise.

Why choose 3M?

3M are a trusted name in adhesives and workplace safety products. From industrial to office environemnts, 3M combines thier high quality products with RS Components excellent customer service to provide reliable workplace safety solutions when you need it.

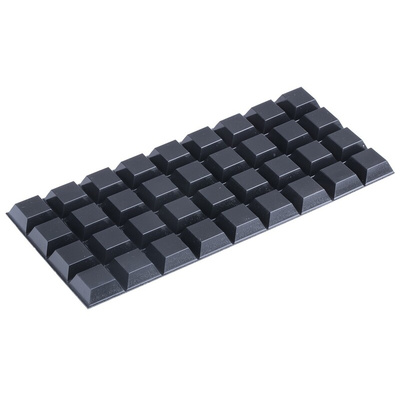

3M Tapered Square Black Self-Adhesive Feet, 7.6mm Height, 20.5mm Width - SJ5023 BLACK

These square adhesive feet from 3M can be used as bumpers and stoppers for commercial and industrial applications. When you attach them to the base of a heavy appliance, the tapered square shape keeps the object balanced by distributing its weight equally. These pads also have a high coefficient of friction, which provides reliable grip. A diameter of 20.5mm means the feet offer good coverage, while being suitable for use with smaller equipment. You can use them on the bottom or at the side of your devices to hold them in place and prevent skidding.

• Maximum operating temperature of +66 °C means they stay in place even in intense environments• Robust (7.6mm) body prevents cuts and tears even when dragged• PUR (polyurethane) material has high load-bearing capacity to withstand heavy applications

Applications

• Office equipment• Factory processes• Repair and maintenance• Control devices

How do I attach these 3M self-adhesive feet to an appliance?

Simply peel off the translucent polyester film that acts as a protective lining. Then press until the pad is stuck firmly. You don't need any additional adhesive, as each pad comes loaded with enough natural rubber adhesive on its inner lining.

Self-adhesive Feet

Flexible polyurethane feet suitable for indoor and limited outdoor applications.

Excellent skid resistance with a high coefficient of friction and excellent resistance to moving and staining
Temperature range -34°C to +65°C
Long ageing resiliency and will not crack or harden
Ideal for use on: glass, aluminium, stainless steel, acrylic plastic, polyethylene, polystyrene, ABS, polypropylene and polycarbonate
To ensure maximum adhesion, surfaces must be clean, dry and well unified
