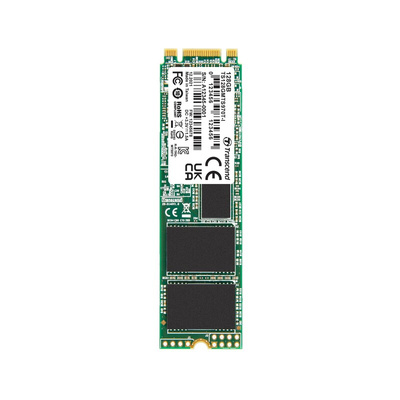

TS128GMTS970T-I, Transcend MTS970T-I M.2 2280 128 GB Internal SSD Hard Drive

Transcend 128GB M.2 2280 SATA III Wide Temperature SSD - MTS970T-I

Transcend's M.2 SSD MTS970T features the SATA III 6Gb/s interface and the state-of-the-art 3D NAND technology,
which allows 112 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 96 layers, this
density breakthrough greatly improves storage efficiency, and its built-in DRAM cache allows faster access. Applied
with 30μ" gold finger PCB and Corner Bond technology, the MTS970T is fully tested in-house to guarantee reliability
in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and an wide operating
temperature ranging from -40℃∼85℃.

Hardware Features

Compliant with RoHS 2.0 standards
Space-saving M.2 form factor (80mm) – ideal for mobile computing
devices
DDR3 DRAM Cache embedded
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Key components fortified by default with Corner Bond technology

Firmware Features

Dynamic thermal throttling
Built-in LDPC ECC (Error Correction Code) functionality
Advanced Global Wear-Leveling and Block management for reliability
Advanced Garbage Collection
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and
reporting for storage devices

Datasheet - TS128GMTS970T-I
