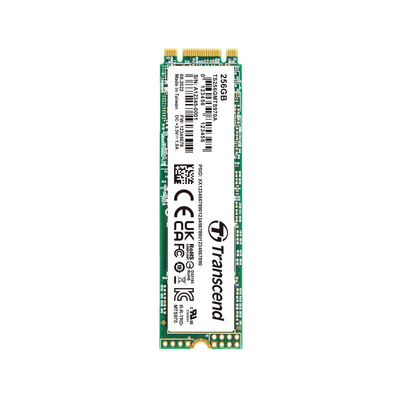

TS256GMTS970A, Transcend MTS970A M.2 2280 256 GB Internal SSD Hard Drive

Transcend 256GB M.2 2280 SATA III TCG OPAL SSD - MTS970A

Transcend's MTS970A M.2 SSD is a self-encrypting drive (SED) that complies with the TCG (Trusted Computing
Group) Opal 2.0 standards. Data is protected using hardware-based AES 256-bit encryption and LBA (Logical Block
Address) sector-specific permissions.
Transcend's MTS970A M.2 SSD features a SATA III 6Gb/s interface and 112-layer 3D NAND flash, delivering
breakthrough density that greatly improves storage efficiency. Its built-in DRAM cache enables fast random read and
write speeds, and improves drive endurance. In addition, the 30μ" gold finger PCB, Corner Bond technology, and antisulfur resistors guarantee its reliability in harsh conditions. Transcend's MTS970A is also 100% chamber tested inhouse for extended operating temperatures of -20℃∼75℃.

Hardware Features

Compliant with RoHS 2.0 standards
DDR3 DRAM Cache embedded
Anti-sulfur technology implemented to prevent sulfurization in the
environment
30μ" PCB gold finger
Key components fortified by default with Corner Bond technology

Firmware Features

Supports S.M.A.R.T. function to conduct health monitoring, analysis, and
reporting for storage devices
Advanced Global Wear-Leveling and Block management for reliability
Built-in LDPC ECC (Error Correction Code) functionality
Dynamic thermal throttling
Compliant with TCG Opal specifications and IEEE 1667 standards

Datasheet - TS256GMTS970A
