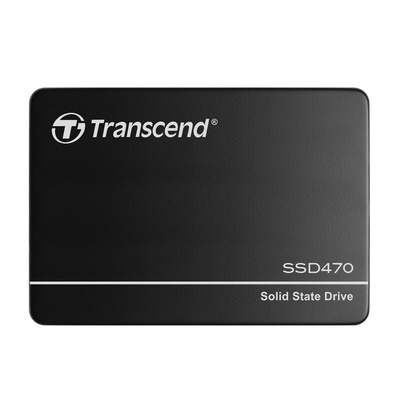

TS256GSSD470A, Transcend SSD470A 2.5 in 256 GB Internal SSD Hard Drive

Transcend 256GB 2.5" SATA III TCG OPAL SED SSD - SSD470A

Transcend's SSD470A 2.5" SSD is a self-encrypting drive (SED) that complies with the TCG (Trusted Computing
Group) Opal 2.0 standards. Data is protected using hardware-based AES 256-bit encryption and LBA (Logical Block
Address) sector-specific permissions.
Transcend's SSD470A SSD features a SATA III 6Gb/s interface and 112-layer 3D NAND flash, delivering
breakthrough density that greatly improves storage efficiency. Its built-in DRAM cache enables fast random read and
write speeds, and improves drive endurance. In addition, anti-sulfur resistors guarantee its reliability in harsh
conditions. Transcend's SSD470A is also 100% chamber tested in-house for extended operating temperatures of
-20℃∼75℃.

Hardware Features

DDR3 DRAM Cache embedded
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Anti-sulfur technology implemented to prevent sulfurization in the
environment
Power Shield (PS) to ensure data transfer integrity and minimize data
corruption in the drive during an abnormal power outage
Promised operational reliability in an extended temperature range (from
-20°C to 75°C)

Firmware Features

Supports S.M.A.R.T. function to conduct health monitoring, analysis, and
reporting for storage devices
Built-in LDPC ECC (Error Correction Code) functionality
Compliant with TCG Opal specifications and IEEE 1667 standards
Full drive encryption with Advanced Encryption Standard (AES)

Datasheet - TS256GSSD470A
