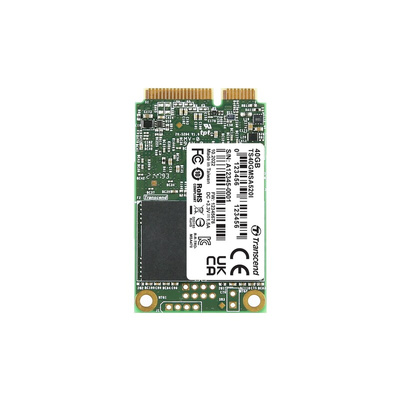

TS40GMSA520I, Transcend MSA520I mSATA 40 GB Internal SSD Hard Drive

Transcend 40GB mSATA SATA III High Endurance SLC Mode Wide Temperature SSD - MSA520I

The MSA520I features the SATA III 6Gb/s interface and 112-layer 3D NAND flash, delivering density breakthrough
that greatly improves storage efficiency. Its built-in DRAM cache allows faster random speeds while the 30μ" gold
finger PCB, Corner Bond technology, and anti-sulfur resistor guarantee its reliability in harsh conditions. Transcend
also adopts the SLC Mode technology to enable the drive to reach competitive speeds and endurance that are equal
to the SLC flash. The MSA520I is fully tested in-house, operating stably in a wide operating temperature range
(-40℃∼85℃).

Hardware Features

Compliant with JEDEC MO-300A
High-quality 3D NAND flash and SLC mode for exceptional endurance
and reliability
Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
Anti-sulfur technology implemented to prevent sulfurization in the
environment
30μ" PCB gold finger

Firmware Features

Supports S.M.A.R.T. function to conduct health monitoring, analysis, and
reporting for storage devices
Advanced Garbage Collection
Advanced Global Wear-Leveling and Block management for reliability
Built-in LDPC ECC (Error Correction Code) functionality
Dynamic thermal throttling

Datasheet - TS40GMSA520I
