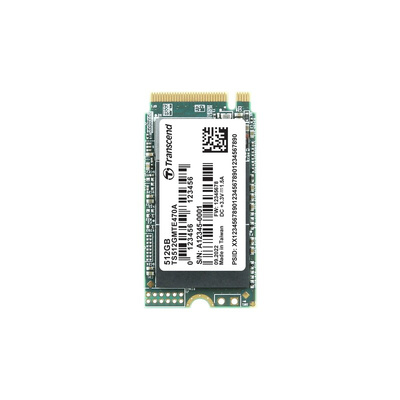

TS512GMTE470A, Transcend MTE470A M.2 2242 512 GB Internal SSD Hard Drive

Transcend 512GB M.2 2242 PCIe gen3 x4 TCG OPAL SED SSD - MTE470A

Transcend's M.2 SSD MTE470A is a self-encrypting drive (SED) that complies with the TCG Opal 2.0 standards. Data
is protected using the hardware-based AES 256-bit encryption and LBA (Logical Block Address)sector-specific
permissions.
Transcend's M.2 SSD MTE470A is built by 112 layers of 3D NAND flash and the PCI Express (PCIe) Gen 3 x4
interface, delivering never-before-seen transfer speeds. Applied with the 30μ" gold finger PCB, Corner Bond
technology, and anti-sulfur resistor, the MTE470A is fortified to withstand demanding industrial applications. The
MTE470A is fully tested in-house and is able to operate in extended operating temperatures ranging from
-20℃∼75℃. Its M.2 2242 form factor is compact and portable, ideal for mobile computing applications.

Hardware Features

PCIe Gen 3 x4 interface
Anti-sulfur technology implemented to prevent sulfurization in the
environment
30μ" PCB gold finger
Key components fortified by default with Corner Bond technology
Power Shield (PS) to ensure data transfer integrity and minimize data
corruption in the drive during an abnormal power outage

Firmware Features

Supports S.M.A.R.T. function to conduct health monitoring, analysis, and
reporting for storage devices
Dynamic thermal throttling
Full drive encryption with Advanced Encryption Standard (AES)
Compliant with TCG Opal specifications and IEEE 1667 standards
Built-in LDPC ECC (Error Correction Code) functionality

Datasheet - TS512GMTE470A
