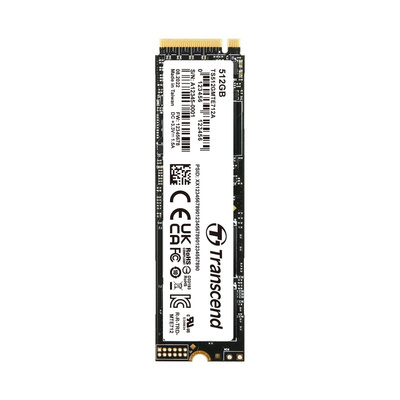

TS512GMTE712A, Transcend MTE712A M.2 2280 512 GB Internal SSD Hard Drive

Transcend 512GB M.2 2280 PCIe gen4 x4 TCG OPAL SED SSD - MTE712A

Transcend's M.2 SSD MTE712A is a self-encrypting drive (SED) that complies with the TCG Opal 2.0 standards.
Data is protected using the hardware-based AES 256-bit encryption and LBA (Logical Block Address)sector-specific
permissions.
The MTE712A features the 112-layer 3D NAND flash and the PCI Express (PCIe) Gen 4 x4 interface, achieving
never-before-seen transfer speeds. Its built-in DRAM cache allows faster random speeds while the 30μ" gold finger
PCB, Corner Bond technology, and anti-sulfur resistor guarantee its reliability in harsh conditions. The MTE712A is
fully tested in-house, operating stably in an extended operating temperature ranging from -20℃∼75℃.
Transcend also offers the MTE712A-I with wide temperature (-40℃∼ 85℃) capabilities to ensure sustained
functionality, enhanced endurance and optimal reliability in mission-critical applications.

Hardware Features

Compliant with PCI Express specification 4.0
Compliant with NVM Express specification 1.4
PCIe Gen 4 x4 interface
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Anti-sulfur technology implemented to prevent sulfurization in the
environment

Firmware Features

Dynamic thermal throttling
Built-in LDPC ECC (Error Correction Code) functionality
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and
reporting for storage devices
Full drive encryption with Advanced Encryption Standard (AES)
Compliant with TCG Opal specifications and IEEE 1667 standards

Datasheet - TS512GMTE712A
