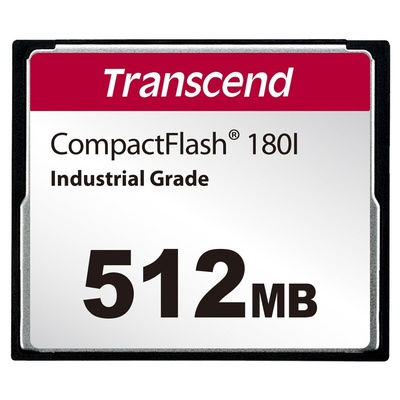

TS512MCF180I, Transcend CF180I CompactFlash Industrial 512 MB SLC Compact Flash Card

Transcend 512MB CompactFlash Industrial High Endurance Wide Temperature CF Card - CF180I

Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND
flash at a more affordable price. Boasting a high-speed data transfer rate, Transcend's SLC Mode CF180I
CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other
industrial applications having high performance and capacity demands. Thanks to their use of Static Data Refresh
technology, CF180I CF cards feature error correction capability, maintain data integrity, and have an extended
lifespan.
Transcend offers the CF180I CompactFlash cards with wide temperature (-40℃ ∼ 85℃) capabilities to ensure
sustained functionality, enhanced endurance and optimal reliability in mission-critical applications

Hardware Features

Compliant with RoHS standards
Compliant with CompactFlash specification 6.0
Power Loss Protection (PLP) to prevent data loss in the event of sudden
power outage
Durability: 10,000 insertion/removal cycles
High-quality MLC NAND flash and SLC mode (also called SuperMLC) for
exceptional endurance and reliability

Firmware Features

Supports S.M.A.R.T. function to conduct health monitoring, analysis, and
reporting for storage devices
Security Command
Static Data Refresh
Operation modes supported: PC Card Memory mode, PC Card IO mode,
and True IDE mode
True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6

Datasheet - TS512MCF180I
