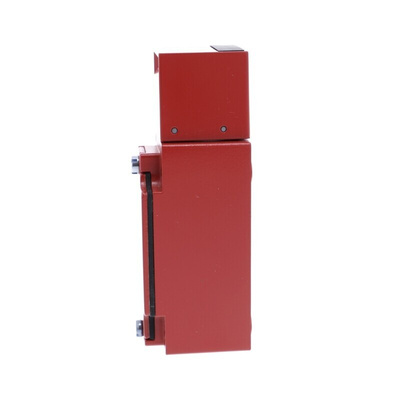

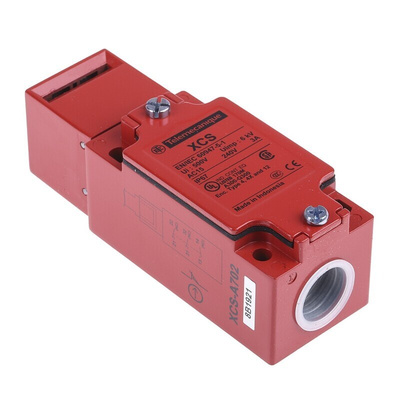

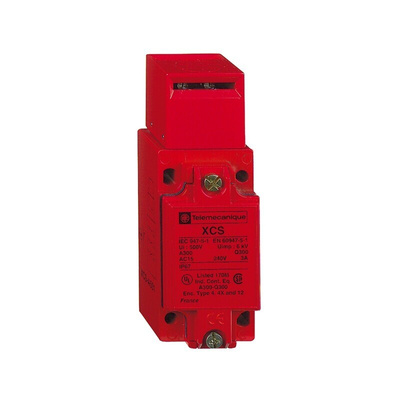

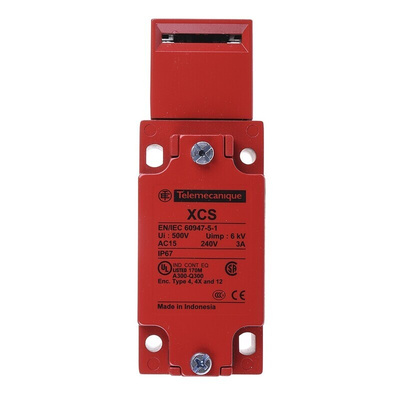

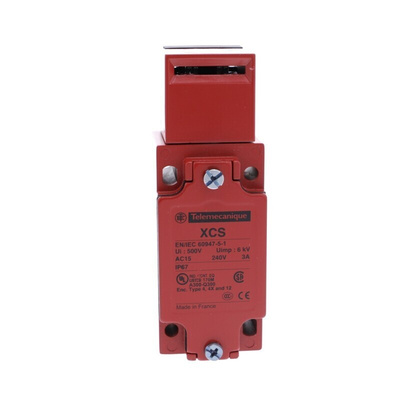

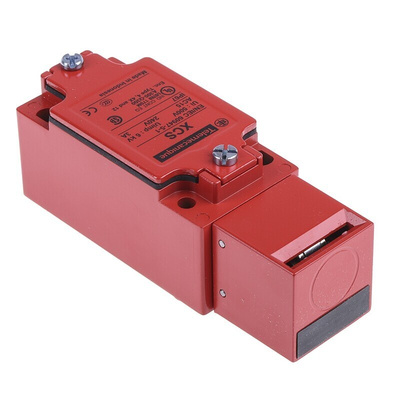

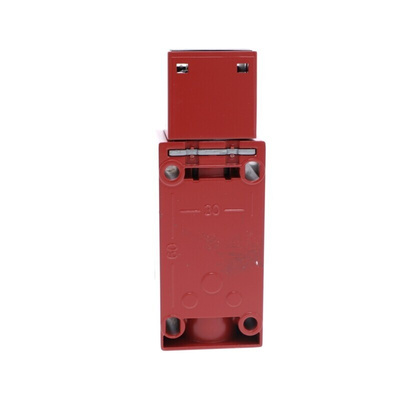

XCSA702, Telemecanique Sensors XCSA Safety Interlock Switch, 2NC/1NO, Keyed , Zinc Alloy, Выключатель

XCSA Safety Interlock Switch

3 positive opening contacts as standard (on guard opening)
A key operated lock enables positive locking of the guard
Optional version with orange LED to indicate guard open/closed
Heavy duty metal DIN style
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
20N minimum operating force for positive opening
IP67 rating
Productivity is increased due to the third contact dedicated to diagnostics
Preventa XCS Safety Switches

Note

Actuators must be purchased separately, see accessories table

Standards

Conforms to EN1088, EN60204

Telemecanique Sensors Safety Interlock Switch, 44mm Depth, 8 Head Directions - XCSA Series - XCSA702

Want to get on top of your health and safety procedures? Install this safety interlock switch from Telemecanique Sensors to quickly cut power to machinery if there's a hazard like guards left open. The unit is operated with a key to cut the risk of unauthorised use. Its compact size of 40 (W) x 113.5 (L) x 44mm (D) makes it useful in applications where space is tight. A mechanical durability of more than 1,000,000 cycles means this is a switch that's built to last.

Features & Benefits

• Zinc alloy housing is durable and corrosion-resistant
• Eight head directions for versatile installation
• 20N minimum force to open lock prevents accidental operation
• Low weight of 0.44kg, so it won't place strain on equipment

Applications

• Factory automation
• Mining and quarrying
• Transportation

Is this safety interlock switch suitable for areas that need to be washed down?

Yes – this switch is IP67 rated for protection against high-pressure water jets and immersion for short periods.

Can I use this switch in harsh conditions?

A wide operating temperature range between -25°C and +70°C makes this a suitable choice for use in demanding settings.

Standards

Conforms to EN1088, EN60204.
