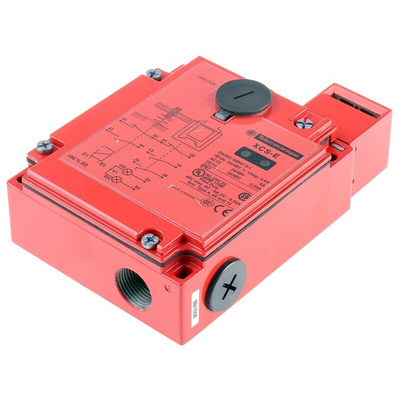

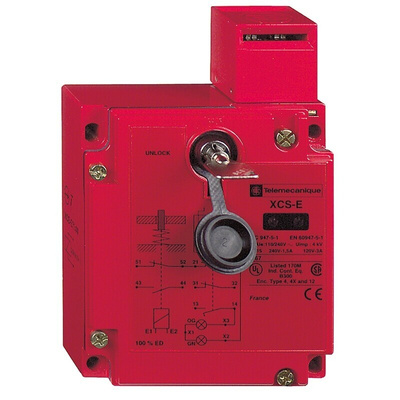

XCSE5312, Telemecanique Sensors XCS-E Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, 2NO/1NC, Actuator Included

Telemecanique Sensors XCSE Solenoid Interlock Switch.

From Telemecanique Sensors this is the XCSE series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSE solenoid interlock switch is ideal for use with heavy duty industrial machines with a low rundown time.

Series Features.

Key operated lock to allow authorised override of solenoid (key supplied)
2 LED indicators (orange/guard open, green/guard closed, key in locked position)
Heavy duty metal compact style to IP67
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
Contact rating 24 Vac/6 A; 110 Vac/3 A; 230 Vac/2 A; 24 Vdc/0.5 A for 1000000 operations
20N minimum operating force for positive opening
Productivity is increased due to the third contact dedicated to diagnostics

Note

Actuators must be purchased separately, see Accessories table.

Standards

Conforms to EN1088, EN60204

Telemecanique Sensors Solenoid Interlock Switch, 3 Poles, 24V AC/DC Supply Voltage - Preventa Series - XCSE5312

Slam the door on machine hazards with the solenoid interlock switch from Telemecanique Sensors. It secures gates and guards while dangerous equipment is in motion, helping to protect personnel against injury. Thanks to its supply voltage of 24V AC/DC, this is a versatile choice for use in low-power systems. As it's made from rugged Zamak, the switch stands up to impact, wear and corrosion, so you can be sure of its durability in harsh industrial environments.

• Compact dimensions of 146 (H) x 98 (W) x 44mm (D) to add minimal bulk to your setup
• IP67 rating means it's dust-tight and protected against submersion in 1m of water for up to 30 minutes
• LED indicators for easy monitoring of operating status
• Broad operating temperature range between -25°C and +40°C for use in demanding environments
• Robust mechanical durability of at least one million cycles for long-lasting performance

Applications

• Medical equipment
• Industrial machinery
• Automatic gates
• Lifts

Can I override this solenoid interlock switch once it's activated?

Yes, for safety, it comes with a key that lets you manually override the switch.

Standards

Conforms to EN1088, EN60204.
