XCSE7312, Telemecanique Sensors XCS-E Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc

Telemecanique Sensors XCSE Solenoid Interlock Switch.

From Telemecanique Sensors this is the XCSE series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSE solenoid interlock switch is ideal for use with heavy duty industrial machines with a low rundown time.

Series Features.

Key operated lock to allow authorised override of solenoid (key supplied)
2 LED indicators (orange/guard open, green/guard closed, key in locked position)
Heavy duty metal compact style to IP67
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
Contact rating 24 Vac/6 A; 110 Vac/3 A; 230 Vac/2 A; 24 Vdc/0.5 A for 1000000 operations
20N minimum operating force for positive opening
Productivity is increased due to the third contact dedicated to diagnostics

Note

Actuators must be purchased separately, see Accessories table.

Standards

Conforms to EN1088, EN60204

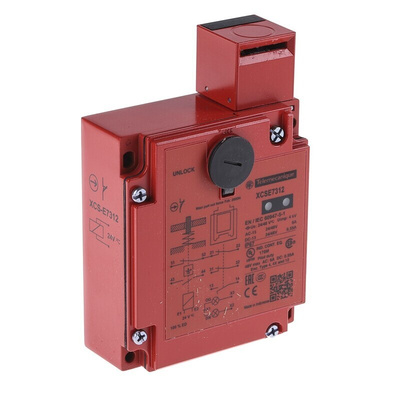

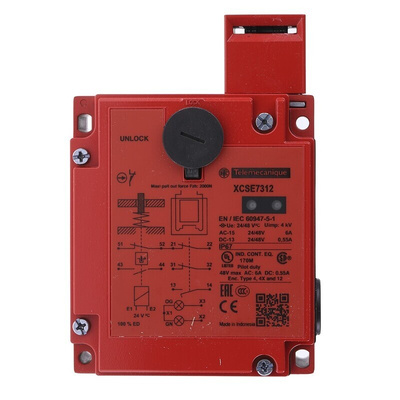

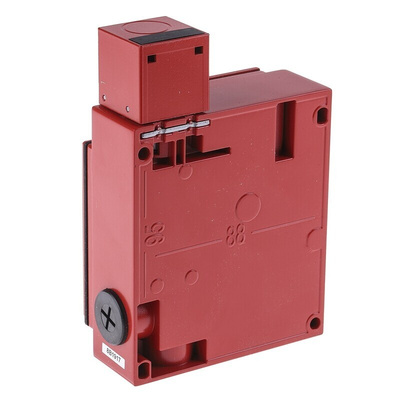

XCSE7312 Safety Switch Sensor.

The Telemecanique Sensors XCSE series solenoid interlock switch has a power supply voltage rating of 24VAC/DC. It has 2 NC / 1 NO safety slow break contacts. The switch is made of a metal housing material and is interlocking, locking and unlocking by solenoid.

Features and Benefits.

• Preventa Safety Detection, Safety Switch.


• Rectangular design.


• Metal (body and head – Zamak).


• Key operated turret head.


• 2 NC + 1 NO (slow break – break before make).


• 2 cable entries tapped M20 x 1.5.


• 3 Poles.


• Terminal clamping.


• Locking – interlocking by solenoid.


• 1 LED (orange –guard closed and locked).


• 1 LED (green – guard open).


• Operating temperature is between -25°C and 60°C


• Maximum contact rating of 6 A


• Mechanical life is up to 1000000 cycles


• Weight 1.14 kg.

Certifications.

• IP67 rated


• EN 1088/ISO14119


• EN/IEC 60204-1


• EN/IEC 60947-5-1


• EN/ISO 12100


• UL508


• CSAC22.2 No 14

Standards

Conforms to EN1088, EN60204.
