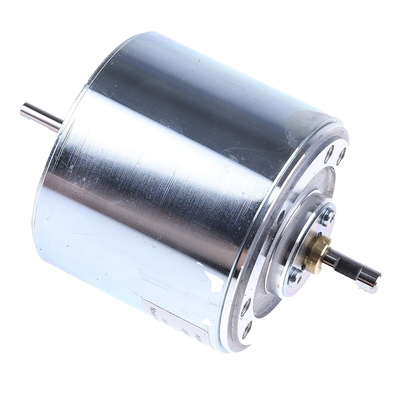

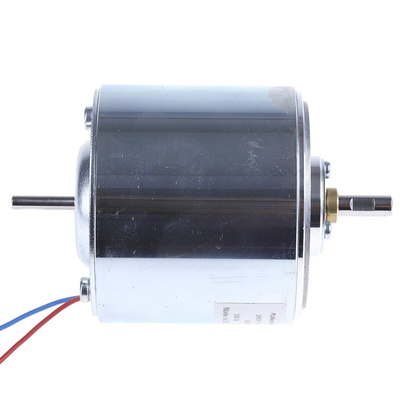

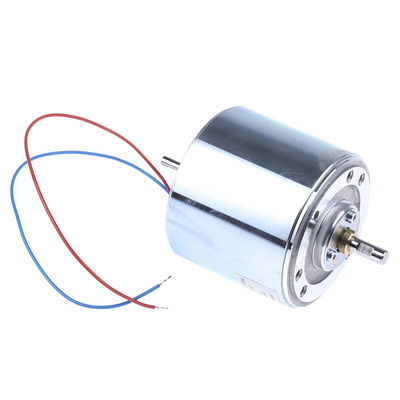

RS PRO 24 V 30 W Servo Motor, 1600 rpm, 27 Ncm Max Output Torque, 6mm Shaft Diameter, Серводвигатель

RS PRO Servo Servo Motor, 30 W, 24 V, 27 Ncm, 1600 rpm, 6 mm Shaft Diameter

This RS PRO servo motor is a practical device to power small tools and appliances, as well as electric vehicles or hoists. In addition to being easy to fit, it'll give you a smooth operation across a wide range of speeds.

The motor has a skewed-ironless rotor, providing seamless linear speed and torque, alongside quick acceleration and an output speed of 1600 rpm. Carbon brushes ensure it has a long life span by transferring the electrical current without a spark. Providing quick starts and stops, but with low electrical emissions, the motor operates at just 24 V.

This type of brush motor is ideal for simple control systems in household appliances or for basic industrial equipment. It’s particularly suitable for motion, movement and positioning appliances, where you can choose the accompanying drive or gearbox.

Features and Benefits

• Servo motor
• Output speed of 1600 rpm
• Current rating of 1.3 A
• Supply voltage of 24 V DC
• Power rating of 30 W
• Maximum output torque of 27 Ncm
• Measures 66 mm in diameter
• Measures 64 mm in length

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
