RS PRO 24 → 30 V 30 W Servo Motor, 1600 rpm, 36 Ncm Max Output Torque, 6mm Shaft Diameter, Серводвигатель

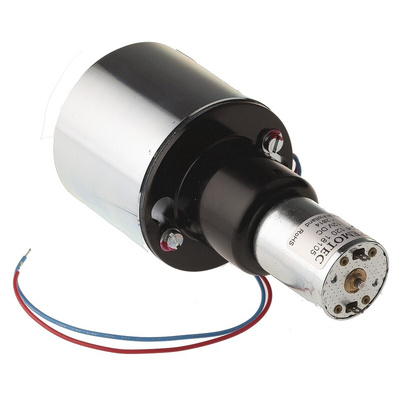

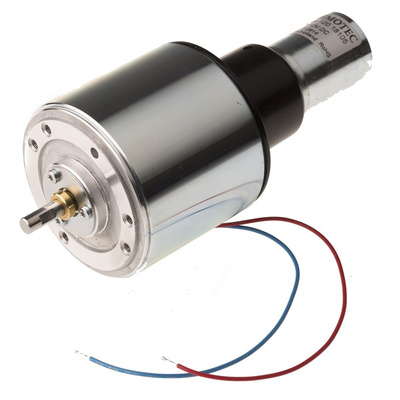

RS PRO Servo Motor, 30 W, 24 V to 30 V, 36 Ncm, 1600 rpm, 6 mm Shaft Diameter

Need a DC servo motor that offers precise speed control? Choose this servo motor from RS PRO. It comes pre-fitted with a tachogenerator that ensures smooth operation over a wide range of velocities.
This servomotor comes with a skewed ironless rotor, so it offers quick acceleration and an output speed of 1600 rpm (revolutions per minute). Carbon brushes transfer the electrical current without a spark, meaning you can be sure of a long service life.
The servomotor is a popular choice in motion and positioning applications where you need to fit a custom drive or gearbox to control the output. This makes it especially handy for use in industrial robotics, toy cars and in-line manufacturing applications. It's typically used along with linear DC servo amplifiers to ensure a continuous flow of power to the motor with minimal noise.

Features and Benefits

• Servo DC motor type
• Current rating of 1.3 A
• Power rating of 30 W
• Length of 134 mm
• Width of 66 mm
• Shaft diameter of 6 mm
• Maximum output torque of 36 Ncm (Newton centimetre)
• Output speed of 1600 rpm (revolutions per minute)
• Stall torque of 14 Ncm (Newton centimetre)
• Supply voltage of 24 V to 30 V DC
