RS PRO 24 → 30 V 30 W Servo Motor, 1600 rpm, 36 Ncm Max Output Torque, 6mm Shaft Diameter, Серводвигатель

RS PRO Servo Servo Motor, 30 W, 24 → 30 V, 36 Ncm, 1600 rpm, 6 mm Shaft Diameter

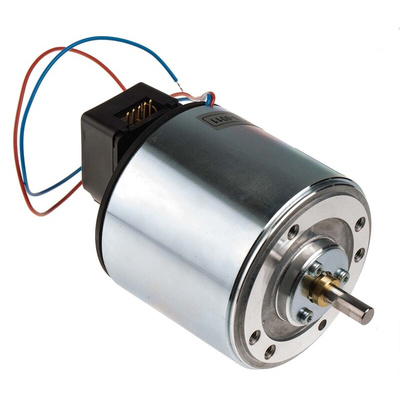

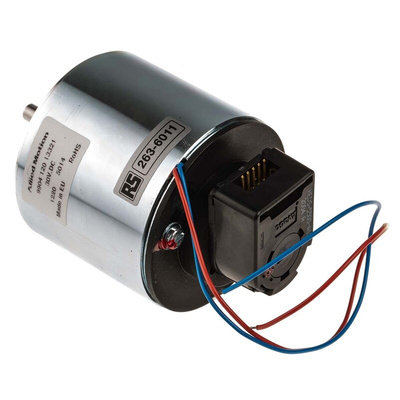

This RS PRO DC servo motor gives you precise digital control for applications within electric vehicles to household tools. It operates at a variety of speeds and can quickly start, stop, reverse and accelerate according to your needs.

The servo motor has a dual-track incremental encoder fitted. This allows you to easily control applications and smoothly increase your operation speed. You'll find the motor has an output speed of 1600 rpm and this can provide 500 pulses per revolution. It also has a current rating of 1.3 A and a power rating of 30 W.

This type of motor is used in many settings and can supply power for small tools or fans and pumps. It’s a popular motor choice as it’s designed for easy installation and gives you control over a wide range of functions.

Features and Benefits

• Servo motor
• Output speed of 1600 rpm
• Current rating of 1.3 A
• Supply voltage of 24 to 30 V DC
• Power rating of 30 W
• Maximum output torque of 36 Ncm
• Diameter of 66 mm
• Length of 88 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
