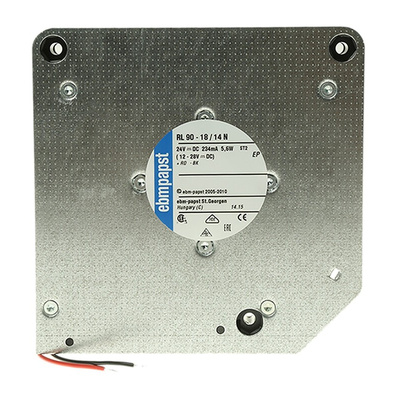

RL90-18/14N, ebm-papst RL 90 N Series Centrifugal Fan, 24 V dc, 40m³/h, DC Operation, 120.6 x 120.6 x 37.3mm

ebm-papst DC Centrifugal Fan

The ebm-papst Centrifugal fan has an airflow of 40m³/h at a fan speed of 2500rpm and has a supply voltage rating of 24VDC. It is centrifugal, flatpack radial, compact fan. It is enabled with a speed signal, a ball bearing and wire leaded power connection. This fan has a scroll housing of fibreglass-reinforced plastic impeller. The fan speed provides an axial air intake and centrifugal air exhaust out of the outlet direction of airflow with the single strands 22AWG, TR 64 leads and forward-curved impeller. This DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

Features and Benefits

Designed for applications with limited space
Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature low power operation

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

UL approved
CSA
VDE
CE certified

Approvals

UL; CSA; VDE

RL90N Series Data Sheet
