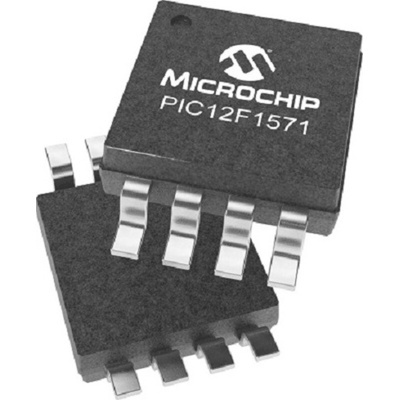

Microchip PIC12F1571T-I/MS 8 bit MCU Microcontroller MCU, PIC12, 8-Pin MSOP, Микроконтроллер

The Microchip PIC12F157X microcontrollers combine the capabilities of 16 bit PWMs with Analog to suit a variety of applications. These devices deliver three 16 bit PWMs with independent timers, for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general-purpose applications. The core independent peripherals, Enhanced Universal Synchronous Asynchronous Receiver Transceiver and Intelligent Analog enable closed loop feedback and communication for use in multiple market segments, such as LIN applications.

Enhanced Mid range Core with 49 Instruction 16 Stack Levels
Flash Program Memory with self read and write capability
128 B of Non volatile Data Storage
Internal clock speeds from 31kHz to 32MHz
3times Standalone 16 bit PWMs
Complementary Waveform Generator
4 Channel 10bit ADC with Voltage Reference
5bit Digital to Analog Converter
Comparator
2x 8-bit Timers TMR0 and TMR2
1x 16-bit Timer TMR1
Three additional 16 bit Timers available using the 16 bit PWMs
Extended Watchdog Timer
Enhanced Power On/Off Reset
Low Power Brown Out Reset
Programmable Brown Out Reset
In Circuit Serial Programming
Wide Operation Voltage Variant F 1.8V – 5.5V
Extreme Low Power LF Variant 1.8V – 3.6V

Datasheet - PIC12F1571T-I/MS
