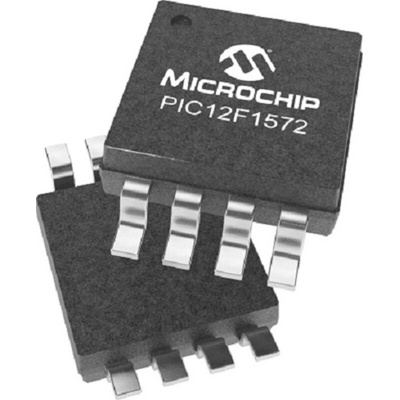

Microchip PIC12LF1572T-I/SN 8 bit MCU Microcontroller MCU, PIC12, 8-Pin SOIC

The Microchip PIC12LF1572T microcontrollers combine the capabilities of 16 bit PWMs with Analog to suit a variety of applications. These devices deliver three 16 bit PWMs with independent timers, for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general purpose applications. The core independent peripherals 16-bit PWMs, Complementary Waveform Generator, Enhanced Universal Synchronous Asynchronous Receiver Transceiver and Intelligent Analog ADCs, Comparator and DAC enable closed loop feedback and communication for use in multiple market segments, such as LIN and DMX applications.

Enhanced Mid range Core with 49 Instruction 16 Stack Levels
Flash Program Memory with self read and write capability
128 B of Non volatile Data Storage
Internal clock speeds from 31kHz to 32MHz
3 times Standalone 16 bit PWMs
Complementary Waveform Generator
4 Channel 10 bit ADC with Voltage Reference
5 bit Digital to Analog Converter
Comparator
2 times 8 bit Timers TMR0 and TMR2
1 times 16 bit Timer TMR1
Three additional 16 bit Timers available using the 16 bit PWMs
Extended Watchdog Timer
Enhanced Power On and Off Reset
Low Power Brown Out Reset
Programmable Brown Out Reset
In Circuit Serial Programming
Wide Operation Voltage Variant F 1.8V – 5.5V

Datasheet - PIC12LF1572T-I/SN
