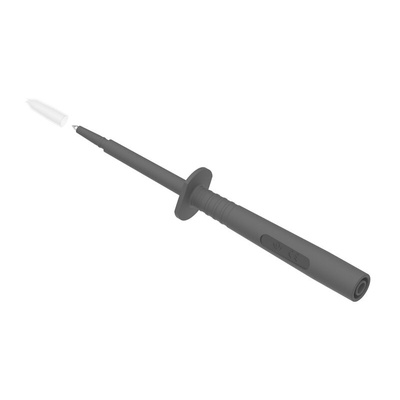

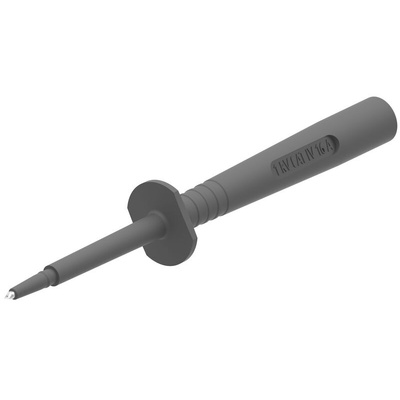

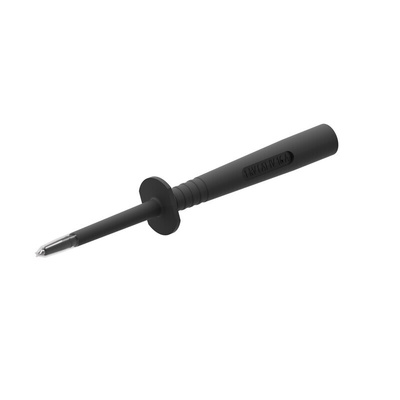

402-IEC-CatIV-N, Electro PJP Narrow Test Probe, 3.4mm Tip, 1kV, 16A

The Electro PJP makes sharp steel tip probe which have 4 mm female type banana jack. This probe is use to measure voltages up to 1000 V CAT IV on contacts which are small and it has sharp steel tip to scrape coatings. Because the tip is sharp and which be hurt the probe is provided with removable insulating sleeve which cover the tip. According to EN / IEC 61010-031:2015, it is compatible with the requirements of protection against the spread of fire and resistance to heat by its basic insulation. The color of the product is black and it has brass and steel type conductor. The operating temperature range is -20 °C to +80 °C.

RoHS compliant
Weight is 0.019 kg
The probe complies with the CAT III and CAT IV (and CAT II) environments.

Datasheet - 402-IEC-CatIV-N
