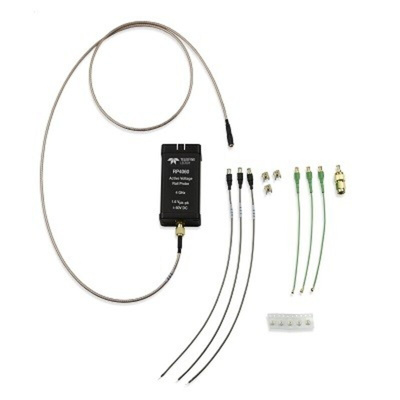

Teledyne LeCroy MCX Series RP2060 Oscilloscope Probe, Power Rail Type, 2GHz, 1.2xdB, Coaxial Connector

Teledyne LeCroy, Power/Voltage Rail Probe 2 GHz bandwidth

The RP4060 and RP2060 probes are designed specifically to probe low-impedance DC power/voltage rails. Low attenuation means a lownoise view of small signal variations at high frequency, while the probe’s built-in offset of up to ±60V enables compensation for the rail’s DC voltage. The probe’s high DC input impedance eliminates loading of the low-impedance DC rail.

2 GHz Bandwidth
±60 V Offset Capability
50 kΩ DC Input Impedance
±800 mV Dynamic Range
1.2x Attenuation for low additive noise

MCX terminated cable with wide variety of connections:

Solder-in (4 GHz)
Coaxial Cable to U.FL receptacle (3 GHz)
MCX PCB Mount (4 GHz)
Browser (500 MHz)

Large Offset Range

Permits the DC signal to be displayed in the vertical center of the oscilloscope grid with a high-sensitivity gain setting.

Low Attenuation and Noise

The probe attenuation is a nominal 1.2x coupled to the oscilloscope at DC 50 Ω. This keeps additive noise to a minimum, and makes it exceptionally useful with Teledyne LeCroy’s 12-bit High Definition oscilloscopes for lowest noise at highest sensitivity gain settings.

High DC Input Impedance

50 kΩ input impedance at DC effectively eliminates probe loading on the DC power/voltage rail and provides for more accurate measurements and signal fidelity.

Applications

Automotive, Power Application, Motor Drive Development, Product Design Application
