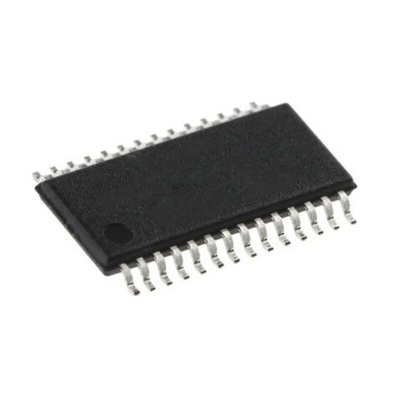

Renesas Electronics 9DB106BGILFT PLL Clock Buffer 28-Pin 28-pin TSSOP

The Renesas Electronics differential buffer is a zero delay buffer which supports PCIe Gen1 and Gen2 clocking requirements. It is driven by a differential SRC output pair from an IDT CK410 or CK505 compliant main clock generator. It attenuates jitter on the input clock and has a selectable PLL bandwidth to maximize performance in systems with or without spread spectrum clocking. An SMBus interface allows control of the PLL bandwidth and bypass options while 2 clock request pins make the device suitable for express card applications.

SMBus interface or unused outputs can be disabled here
Spread spectrum compatible or tracks spreading input clock for low EMI available
PLL or bypass mode or PLL can dejitter incoming clock present
6 to 0.7 V current mode differential output pairs
