DG 1010, Noga Aluminium Alloy Base & Arm

NOGA Thread/Indicator Arm

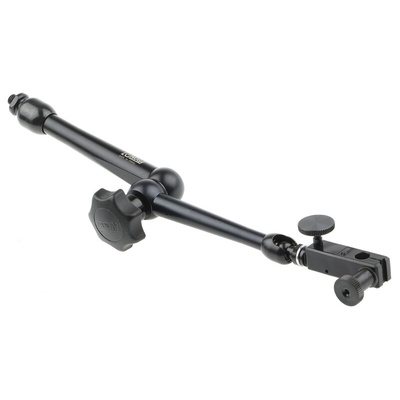

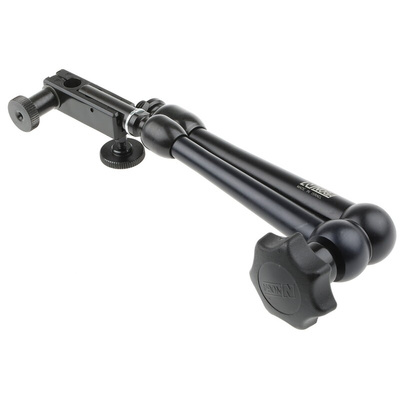

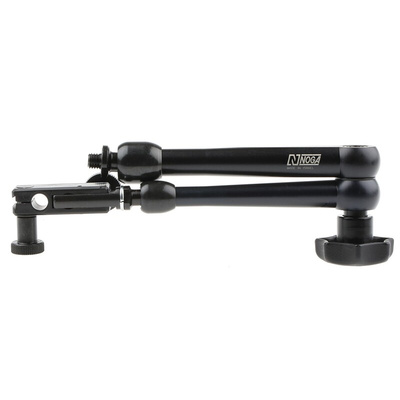

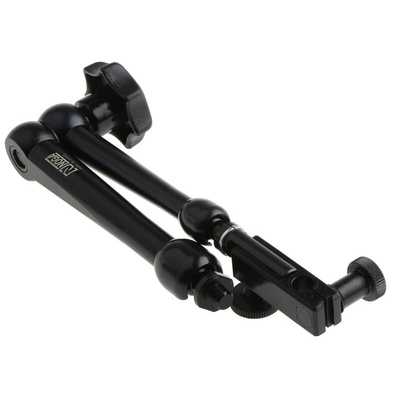

The NOGA thread/indicator arm is a high tech holding system with two articulated arms that can be easily locked in any position using the single central locking knob. Fitted with fine adjustment, the device can hold indicators with 8mm stems along with dovetail fittings. It is enabled with an indicator fitment at the upper end and a male metric thread on the lower end for permanent attachment to a machine or any object with a compatible threaded hole.
Note:
The fine adjustment method varies from base to base. It can be adjacent to the magnetic base or instrument clamp.

Features and Benefits

Centre lockscrew locks all arm joints simultaneously
Fine adjustment possible on DTI clamp position
Full articulation in all planes
Gauge Holder is 44mm long
Lower arm fitment has a male M8 x 1.25 thread
Material is aluminium alloy
The lower arm is 110mm long and upper arm is 101mm long
Top arm fitment accepts dovetail lever indicators or 8mm stem dial test indicators
Weight is 0.35kg
