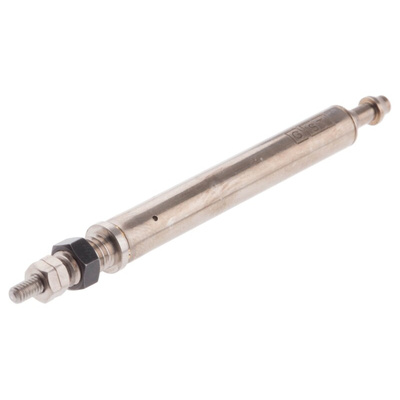

CJ1B4-15SU4, SMC Pneumatic Piston Rod Cylinder - 4mm Bore, 15mm Stroke, CJ1 Series, Single Acting, Пневмоцилиндр

2646153
Номер производителя: CJ1B4-15SU4Производитель: SMC
Цена за шт.
7189.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Pneumatic Needle Cylinders

Designed to automate delicate operations
Plug directly into 4mm OD x 2.5mm ID tubing, available separately
Single acting - spring retracting
Non-lubricated

Test pressure10.5 Bar
Operating pressure 3 bar (min) to 7 bar (max)
Ambient and fluid temperature -10°C to +70°C
Piston speed 50-500mm/sec
Non-cushioned
Stroke tolerance +0.5mm -0mm

Note

Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7 bar)
