945-13766-0005-000, NVIDIA Jetson Orin Nano Developer Kit Development Kit

The NVIDIA Jetson Orin Nano developer kit sets a new standard for creating entry level AI powered robots, smart drones, and intelligent cameras. It also simplifies the process of starting with Jetson Orin Nano series modules. Compact design, lots of connectors and up to 40 TOPS of AI performance make this the perfect developer kit to bring your AI concepts to life. With up to 80X the performance of Jetson Nano, it can run all modern AI models, including transformer and advanced robotics models.

What makes the NVIDIA® Jetson Orin™ Nano Developer Kit great?

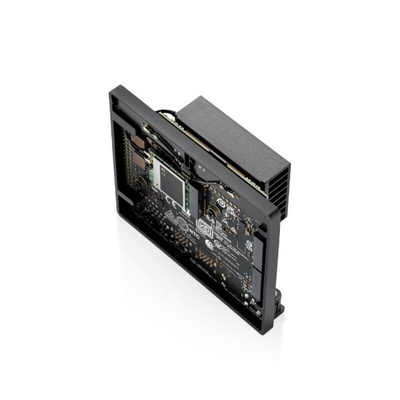

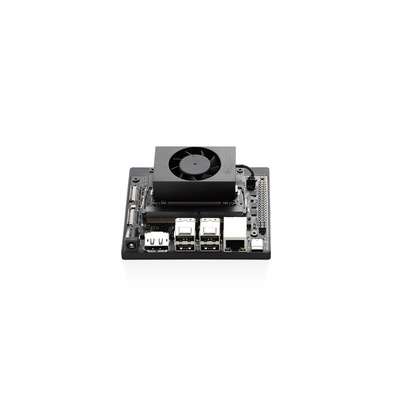

The developer kit is made up of the Jetson Orin Nano 8GB module and a reference carrier board that can accommodate all Orin Nano and Orin NX modules, providing a perfect platform for prototyping next-gen edge AI solutions.
It benefits from an Ampere GPU and a 6-core ARM CPU, enabling multiple concurrent AI application pipelines and high-performance inference. The carrier board has an array of connectors, including two MIPI CSI connectors supporting camera modules with up to 4-lanes.
Jetson runs the NVIDIA® AI software stack, so you'll find software for your specific needs whether that's building a robotics solution, vision AI, conversational AI and more.
The NVIDIA® Jetson Orin™ Nano Developer Kit is compatible with a variety of tools, add-ons, and software.

What’s included in the NVIDIA® Jetson Orin™ Nano Developer Kit?

Jetson Orin Nano™ 8GB module with heat sink and reference carrier board
DC Power Supply
802.11ac/abgn wireless network interface controller
Quick Start Guide

Technical Specifications of the Jetson Orin Nano 8GB Module

GPU - NVIDIA® Ampere architecture with 1024 CUDA cores and 32 tensor cores
CPU - 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory - 8GB 128-bit LPDDR5

68GB/s
Storage - Supports SD card slot and external NVM
Video Encode - 1080p30 supported by 1-2 CPU cores
Video Decode - 1x 4K60 (H.265)

2x 4K30 (H.265)

5x 1080p60 (H.265)

11x 1080p30 (H.265)
Power - 7W-15W

Technical Specifications of the Reference Carrier Board

Camera - 2x MIPI CSI-2 22-pin camera connectors
PCle - M.2 Key M slot with x4 PCIe Gen3

M.2 Key M slot with x2 PCIe Gen3

M.2 Key E slot
USB - USB Type-A connector: 4x USB 3.2 Gen2

USB Type-C connector for UFP
Networking - 1xGbE connector
Display - 1x DP 1.2 (+MST) connector
Other I/O - 40-pin expansion header (UART, SPI, I2S, I2C, GPIO)

12-pin button header

4-pin fan header

microSD slot

DC power jack
Mechanical - 100mm x 79mm x 21mm

(Height includes feet, carrier board, module, and thermal solution)

Datasheet - 945-13766-0005-000
