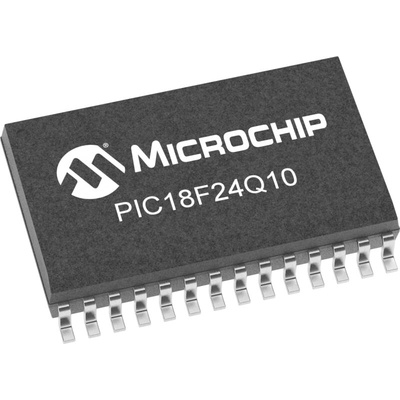

Microchip PIC18F24Q10-I/SO PIC Microcontroller MCU, PIC18, 28-Pin SOIC

The Microchip PIC series 8bit low power, high performance MCU feature analog, core independent and communication peripherals for a wide range of general purpose and low-power applications. This 28-pin device is equipped with a 10-bit ADC with computation (ADC2 ) automating capacitive voltage divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and performing automatic threshold comparisons. It also offer a set of core independent peripherals such as complementary waveform generator (CWG), windowed watchdog timer (WWDT), cyclic redundancy check (CRC)/memory scan, zero-cross detect (ZCD) and peripheral pin select (PPS), providing increased design flexibility and lower system cost. It has 16 KB flash memory, 1KB RAM, 256B EEPROM, 25 I/O ports and 28 pins. It's operating temperature ranges between -40°C to +85°C (Industrial).

PIC18 Core with 83 instructions, 31 stack levels
Internal 64MHz oscillator
1.8V – 5.5V operating voltage range
10-bit ADC with computation, 24 channels
Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders
CRC with memory scan
Windowed Watchdog Timer (WWDT)
Three 8-bit Timers/Counters
Four 16-bit Timers/Counters
Three power saving operating modes
C compiler optimized RISC architecture

Datasheet - PIC18F24Q10-I/SO
