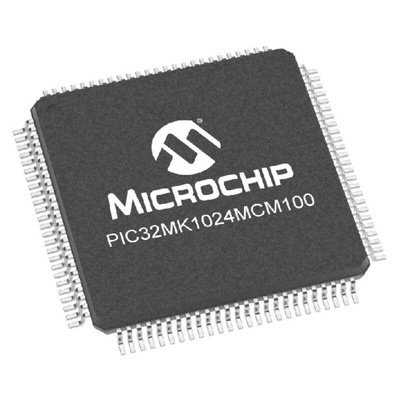

Microchip PIC32MK1024MCM100-I/PT PIC Microcontroller, PIC32, 100-Pin TQFP

The Microchip 32-Bit microcontroller combine 120Mhz performance with up to 1MB of ECC protected flash memory, and a rich peripheral set targeting applications such as motor control, industrial control and Industrial Internet of Things (IIoT) and multi-channel CAN and CAN-FD applications. This microcontroller feature 7x 12-Bit ADC's each operating at up to 3.75MSPS, which can be combined and sequenced to provide up to 25.4MSPS sampling rates! In addition, multiple OpAmps. comparators and DAC's are included as well. Analog simulation of the comparators and OpAmps is now supported in the MPLAB Mindi Analog Simulator. Application software examples and driver libraries are included as part of the Harmony V3 Framework.

Code-efficient (C and Assembly) architecture
Two 32-bit core register files to reduce interrupt latency
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timers (WDT) and Deadman Timer (DMT)
Fast wake-up and start-up
On-board capacitor less regulator
Six SPI control interfaces
External Graphics interfaces through PMP
5V-tolerant pins
In-circuit and in-application programming
Motor control version

Datasheet - PIC32MK1024MCM100-I/PT
