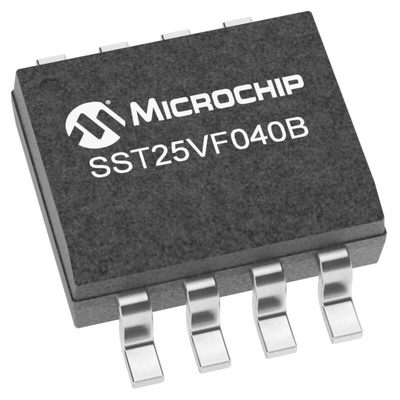

Microchip 4Mbit SPI Flash Memory 8-Pin SOIC, SST25VF040B-50-4I-SAF-T

The Microchip serial flash memory features a four-wire, SPI compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF040B device is enhanced with improved operating frequency for lower power consumption. This SPI serial flash memory is manufactured with SST proprietary, high-performance CMOS Super flash technology. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability compared with alternate approaches. This device significantly improve performance and reliability, while lowering power consumption.

SPI Compatible: Mode 0 and Mode 3
Supports 50 MHz SPI clock
Active Read Current: 10 mA (typical)
Program & Erase Current: 30mA (max)
Standby Current: 5 μA (typical)
Chip-Erase Time: 35 ms (typical)
Sector-/Block-Erase Time: 18 ms (typical)
Byte-Program Time: 7 μs (typical)
RoHS compliant

Datasheet - SST25VF040B-50-4I-SAF-T
