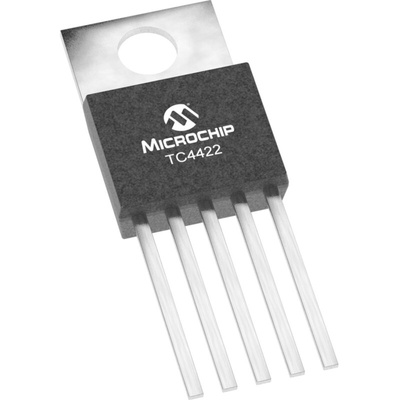

The Microchip MOSFET gate driver is capable of driving large MOSFETs and IGBTs. It is essentially immune to any form of upset except direct overvoltage or over-dissipation, it cannot be latched under any conditions within their power and voltage ratings. It is not subject to damage or improper operation when up to 5 V of ground bounce is present on their ground terminals. The TC4422 inputs may be driven directly from either TTL or CMOS (3 V to 18 V). In addition, 300 mV of hysteresis is built into the input, providing noise immunity and allowing the device to be driven from slowly rising or falling waveforms.
Tough CMOS™ construction
High peak output current: 9 A
High continuous output current: 2 A Max
30 ns with 4,700 pF load
180 ns with 47,000 pF load
30 ns Short internal delays (Typical)
1.4 Ω low output impedance (Typical)
Datasheet - TC4422CAT
