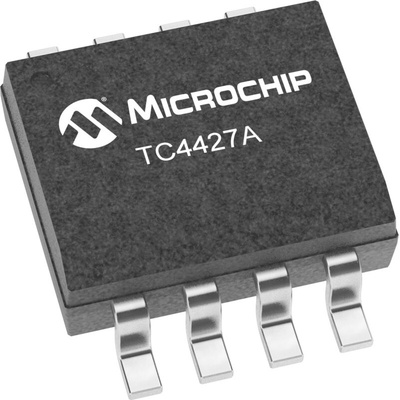

Microchip TC4427AEOA713, 1.5 A, 18V 8-Pin, SOIC

The Microchip MOSFET gate driver will not latch up under any conditions within their power and voltage ratings. It is not subject to damage when up to 5 V of noise spiking (of either polarity) occurs on the ground pin. It can accept, without damage or logic upset, up to 500 mA of reverse current (of either polarity) being forced back into their outputs.

4.5 V to 18 V wide operating range
High capacitive load drive capability: 1,000 pF in 25 ns
Less than 30 ns short delay times (Typical)
Matched rise, fall and delay times
With Logic ''1'' Input: 1 mA
With Logic ''0'' Input: 100 μA
Low Output Impedance: 7 Ω (Typical)
Input Will Withstand Negative Inputs Up to -5 V
ESD Protected: 4 kV
Pinouts Same as TC426/27/28

Datasheet - TC4427AEOA713
