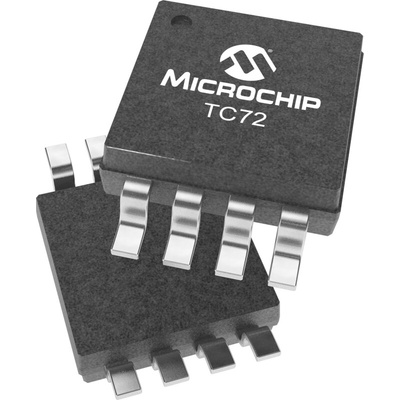

TC72-3.3MUATR, Microchip Temperature Sensor, Digital Output, Surface Mount, SPI (4-Wire), ±3°C

The Microchip digital temperature sensor capable of reading temperatures from -55°C to +125°C. It can be used either in a continuous temperature conversion mode or a one-shot conversion mode. The continuous conversion mode measures the temperature approximately every 150 msec and stores the data in the temperature registers. In contrast, the one-shot mode performs a single temperature measurement and returns to the power saving shut down mode. It features high temperature accuracy, ease-of-use and is therefore the ideal solution for implementing thermal management in a variety of systems. The device also features a shutdown mode for low power operation.

4-wire SPI Compatible Interface
10-Bit resolution (0.25°C/Bit)
±2°C accuracy from -40°C to +85°C
±3°C Accuracy from -55°C to +125°C
Low Operating Current: 250uA (typical)
Shutdown Mode: 1uA (max)
Power Saving One-Shot Temperature Measurement
Does not require any additional external components

Datasheet - TC72-3.3MUATR
