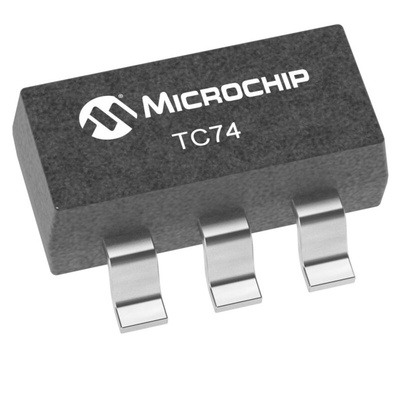

The Microchip tiny serial digital temperature sensor particularly suited for low cost and small form-factor applications. Temperature data is converted from the on-board thermal sensing element and made available as an 8-bit digital word. Communication with the this IC is accomplished via a simple 2-wire SMBus/I2C™-compatible serial port. This bus also can be used to implement multi-drop/multi-zone monitoring. The SHDN bit in the CONFIG register can be used to activate the low-power Standby mode. Small size, low installed cost and ease of use make the it an ideal choice for implementing thermal management in a variety of systems.
Outputs temperature as an 8-Bit digital word
Simple serial port interface
±2°C Accuracy from +25°C to +85°C
±3°C Accuracy from 0°C to +125°C
Supply Voltage of 2.7V to 5.5V
200 μA (typ.) Operating Current
5 μA (typ.) Standby Mode Current
Temperature resolution is 1°C
Datasheet - TC74A4-3.3VCTTR| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
