RS PRO Panel Mount Multi Tone Alarm Sounder, 9 → 28 V ac/dc, 92dB at 1 m, IP65, DC, 32-Tone

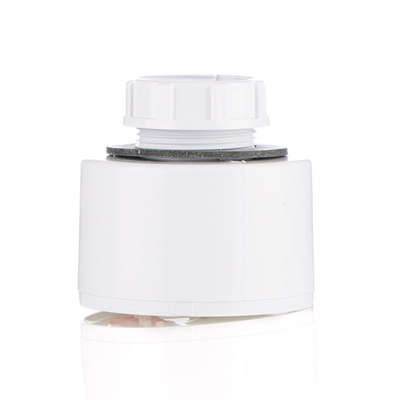

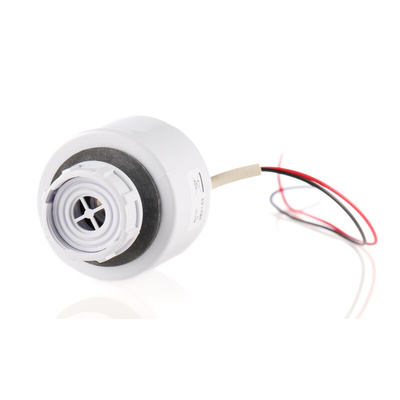

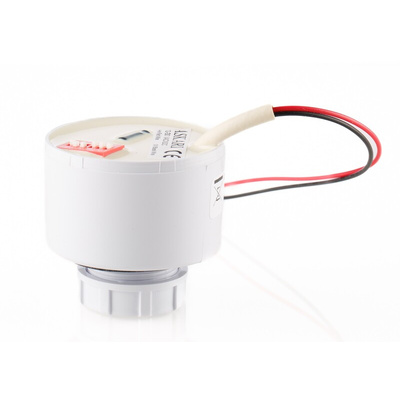

RS PRO Panel Mount Multi-Tone Alarm Sounder

Get peace of mind with the RS PRO Multi-Tone Alarm Sounder. Easy to install and with 32 selectable tones, you can customise your security system to fit your needs. Quickly switch between primary and secondary tones, keeping your property safe and secure. Choose the perfect audio signal for any application with the RS PRO Multi-Tone Alarm Sounder.

Why Would You Choose This Alarm Sounder?

Our alarm sounder is fitted with an adjustable volume control, adjusted from 67dB to 92 dB. The "9-28VAC/DC" specification indicates the range of voltage that the sounder can operate on, which includes both alternating current (AC) and direct current (DC) power sources. This flexibility allows the sounder to be used in a wide range of electrical systems.

Features and Benefits

• 32 tones, the tones are compatible with Roshni, Squashni and Flashni sounders


• Users will commonly find this type of electronic sounder within industrial, lighting and security applications


• Offers a second tone for a two-stage alarm


• Easily install


• White in colour, the sounder has an aesthetically pleasing finish


• ABS construction, strong resistance to corrosive chemicals and physical impacts


• Current rating: 18mA


• Voltage rating: 9 to 28VDC/AC


• Improved tone clarity, reducing confusion


• Automatic synchronisation


• Dedicated panel fixing


• IP65 rating


• Option to use internally or externally


• Excepts most DC supplies

Specifications

• Casing Material: ABS


• Electrical connection: 2 wires for the AC/DC version


• Housing Colour: White


• Diameter: 50 mm


• Weight: 0.09kg


• Fully sealed IP65 protection

Variants – Available Separately

• RS PRO Multi-Tone Alarm Sounder, 9-28VAC/DC - RS stock no: 264-9555


• RS PRO Multi-Tone Alarm Sounder, 9-28VDC - RS stock no: 264-9557

Applications

• Control Panels


• Electrical Enclosures

FAQs

Can I sync this electronic sounder with a visual warning unit, such as a beacon?
Yes. This electronic sounder has an automatic synchronisation function so you can use it with visual warning components.

How much space do I need to install this electronic sounder?
This electronic sounder is 50mm in diameter, so you can easily install it in small spaces.

RS PRO Datasheet
