RS PRO Panel Mount Multi Tone Alarm Sounder, 9 → 28 V dc, 92dB at 1 m, IP65, DC, 32-Tone

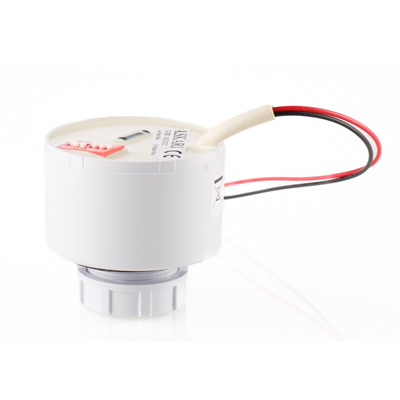

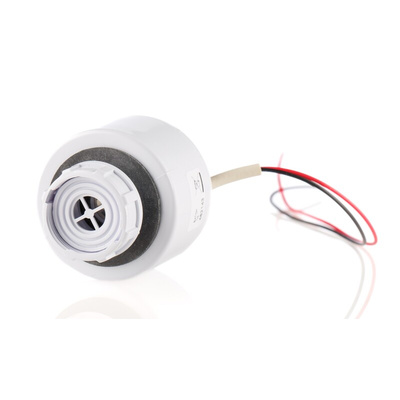

RS PRO Panel Mount Multi-Tone Alarm Sounder

Get peace of mind with the RS PRO Multi-Tone Alarm Sounder. Easy to install and with 32 selectable tones, you can customise your security system to fit your needs. Quickly switch between primary and secondary tones, keeping your property safe and secure. Choose the perfect audio signal for any application with the RS PRO Multi-Tone Alarm Sounder.

Why Would You Choose This Alarm Sounder?

Our alarm sounder is fitted with an adjustable volume control, adjusted from 67dB to 92 dB. The "9-28VDC" specification indicates the range of voltage that the sounder operates onin this case a direct current (DC) power source

Features and Benefits

• White in colour, the sounder has an aesthetically pleasing finish


• Tone selectable switch and volume control options


• Easily to install into control enclosures


• ABS construction, strong resistance to corrosive chemicals and physical impacts


• Excepts most DC supplies


• Option to use internally or externally


• Dedicated panel fixing


• 32 tones, the tones are compatible with Roshni, Squashni and Flashni sounders


• Offers a second tone for a two-stage alarm


• ABS construction, strong resistance to corrosive chemicals and physical impacts


• 92dBA sound output at 24VDC


• Automatic synchronisation


• Current rating: 18mA


• Voltage rating: 9VDC to 28VDC


• IP65 rating

Specifications

• Casing Material: ABS


• Electrical connection: 3 Wire flying leads version


• Housing Colour: White


• Diameter: 50 mm


• Weight: 0.09kg


• Fully sealed IP65 protection

Variants – Available Separately

• RS PRO Multi-Tone Alarm Sounder, 9-28VAC/DC - RS stock no: 264-9555


• RS PRO Multi-Tone Alarm Sounder, 9-28VDC - RS stock no: 264-9557

Applications

• Control Panels


• Electrical Enclosures

FAQs

Can I use this sounder in harsh conditions?
Yes – this sounder operates in temperatures ranging from -25°C to +70°C so it's suitable for use in heavy-duty indoor and outdoor settings. The housing is made from rugged ABS (acrylonitrile butadiene styrene), which is resistant to corrosives and chemicals.

Can I change the volume on this electronic sounder?
Yes. This electronic sounder has both tone-select and volume-control options.

RS PRO Datasheet
