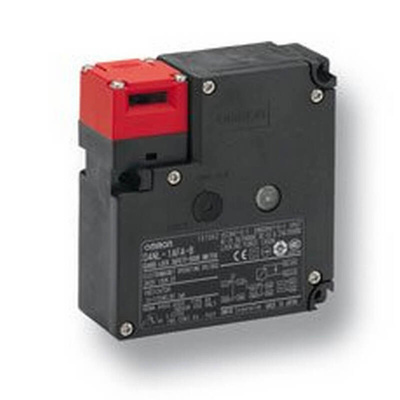

D4NL-2DFA-B, Omron D4NL Series Solenoid Interlock Switch, 2NC/2NC

D4NL Safety Guard-lock Door Switch

A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). Sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches.

Safety door switch with either electromagnetic lock or unlock mechanism
Four head mounting directions possible
Four built-in contacts
Strong key holding force, 1300 N
For standard loads and micro loads
IP67 rating (applies to switch only, key hole is IP00)
Contains no harmful substances, such as lead or cadmium, reducing the burden on the environment

Note

Actuators sold separately.
Stock nos. 746-7289 and 746-7132 have a special release key included.

Standards

IEC/EN60947-5-1

Approvals

cULus, TUV, CE, CCC

Datasheet - D4NL-2DFA-B
