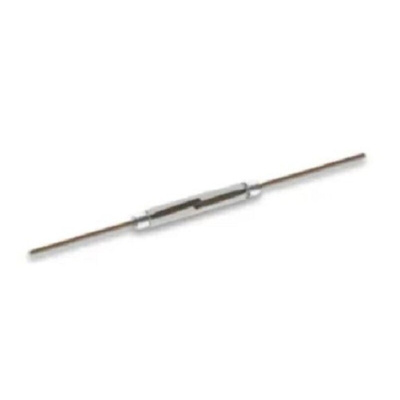

RS PRO SPCO Form A Through Hole Reed Switch, 1.5A 300V

RS PRO 1NO, Miniature, Through Hole Reed Switch 30-35AT, 300 V, 1.5 A, Glass, 70 W, 1 Form A- Contact

From RS PRO we offer you a selection of high-quality miniature 1 form A changeover magnetically operated reed switches. The Reed Switches glass body is hermetically sealed with magnetically operated contacts ensuring no external contamination. The many benefits of the RS PRO Reed switches are, dependable with a long operational life plus will not wear out when switching, and with the switches requiring little power to work are suitable for a range of devices and applications even within the harshest environments.

Reed Switch Dimensions

• Overall length 54 mm


• Glass body length 20.3 mm


• Glass body diameter 2.5 mm

Features & Benefits

• Miniature Reed Switch 1NO


• 1 Form A Changeover


• KMS-50 Test coil


• Pull in 30AT minimum, 35AT maximum


• 70 W maximum contact rating


• Through Hole mounted


• 1.5 A Switching current


• 300 V dc Switching voltage


• Operating temperature -20°C to +125°C
\t

• PGM-Alloy contacts

Applications Type

• Control boxes


• Kitchen devices


• Motors


• Fluid flow, Test and Measurement, Safety and Security plus may more

What is a Reed Switch

Basically, a Reed Switch is an electrical switch that works with a magnetic field and consists of two thin, easily magnetised, metal reeds all sealed within a glass tube, usually filled with an inert gas. The reeds are positioned within the sealed tube close together but do not touch. When a magnetic field operates close to the reed switch it then becomes magnetised which causes the reeds to make physical contact which in turn closes an electrical circuit allowing current to flow through the reed switch. When the magnetic field is removed all magnetisation is removed and the reeds lose contact returning to their normal state (not touching, open) which then stops the electrical circuit.
