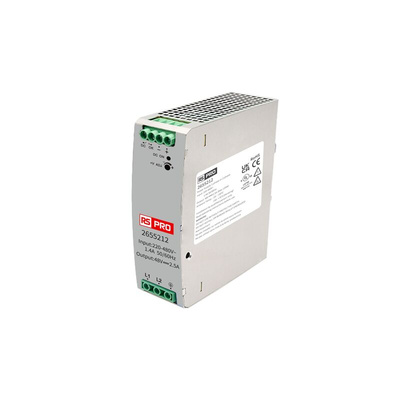

RS PRO DIN Rail Power Supply, 180 - 600V ac ac, dc Input, 48 - 55V dc Output, 2.5A Output, 120W

RS PRO AC/DC 120W DIN-Rail Power Supply – 2.5A

Upgrade your power supply game with RS PRO’s new DIN-Rail power supplies series. Designed for industrial control equipment and machinery, these 120W power supplies offer a cost-effective, energy-efficient, and green solution for your standard DIN-rail mounting needs. Each unit comes with features such as high stability and low noise interference. Not only are they lightweight and compact, but also built to withstand harsh environments.

Features and Benefits

• Input Single/Two phase 180-600VAC or 254-848VDC input


• 150% peak load output for 3 seconds


• Slimline design


• Efficiency up to 92%


• DC OK function


• DC ON output status indicator LED


• Operating temperature range – 25 °C to +70 °C


• Output short circuit, over-current, over-voltage protection


• EMI performance meets. CISPR32 / EN55032 CLASS B

Dimensions

• L.110.0mm x W. 41.0mm x H.124.0mm

Safety

• UL508, UL61010, IEC62368, IEC60664

Variants Available Separately

• 12V, 120W, 10A – RS stock no: 265-5210


• 24V, 120W, 5A – RS stock no: 265-5211


• 48V, 120W, 2.5A – RS stock no: 265-5212

RS PRO Datasheet
