RS PRO Redundancy Module DIN Rail Power Supply, 22 - 60V dc dc Input, 24 → 48V dc Output, 20A Output, 480 / 960W

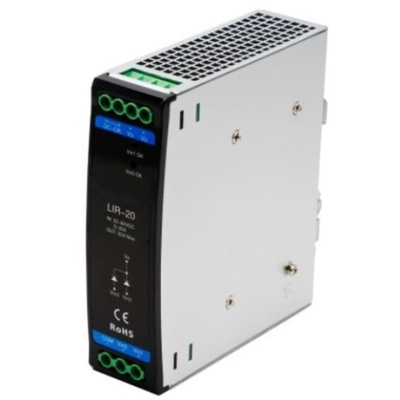

RS PRO DC-DC Parallel Redundancy Module

Enjoy this superb Din-Rail parallel redundancy module from RS PRO. The main purpose of a DC/DC PRM is to enhance the reliability of the power system by providing backup power in case of a failure or breakdown in one of the power modules. The parallel redundancy module features wide input voltage range, wide operating temperature, high efficiency, and high reliability.

Features and Benefits

• Input voltage range: 22 - 60VDC


• Operating ambient temperature range: -40°C to +80°C


• Slimline design: width 35mm


• Efficiency up to 97%


• DC OK function


• 1500VAC insulation voltage


• Two input status indicators, relay contact signal output


• Supporting for N+1 parallel redundancy


• Operating altitude up to 5000m

Safety Approved

• IEC/UL62368, EN61558, EN60335

Dimensions

• 35.00 x 125.00 x 112.70 mm

Applications

• Industrial control systems


• Instrumentation and machinery equipment

RS PRO Datasheet
