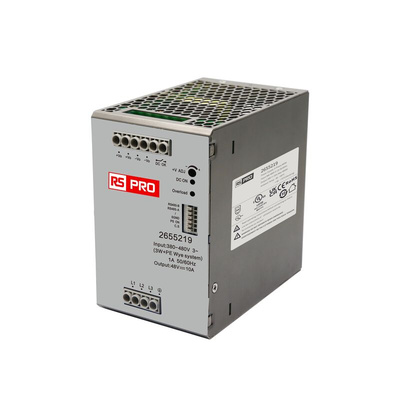

RS PRO DIN Rail Power Supply, 320 - 600V ac ac, dc Input, 48 - 56V dc Output, 10A Output, 480W

RS PRO AC/DC 480W DIN-Rail Power Supply 10A

Take your power supply to the next level with these 480W DIN-Rail Power Supplies by RS PRO. Designed specifically for industrial control equipment, factory automation, and mechanical and electrical equipment, this series of three-phase switching power supplies is a game-changer. Featuring a 150% power reserve, these converters effortlessly support DC motor start-up and heavy capacitive loads without breaking a sweat. With excellent EMC performance and compliance with IEC/EN/UL62368, UL/EN61010-1, UL508, and UL/EN61010-2-201 standards, you can trust in their reliability and safety.

Features and Benefits

• Three-phase 320-600 VAC Or 450-800 Vdc


• Active PFC


• Parallel operation, built-in O-ring diodes, active current sharing


• Efficiency up to 95.6%


• Fault alarm function


• RS485 interface, output monitoring and product status and information


• Double-sided conformal coating, salt-spray proof


• Operating temperature range - 30℃ to +70℃


• Output short circuit, over-current, over-voltage protection


• EMI performance meets. CISPR32 / EN55032 CLASS B

Dimensions

• 80.0 mm x 124.0 mm x 127.0 mm

Safety

• IEC/EN/UL/BS EN62368, UL/EN61010-1, UL508, UL/EN61010-2-201

Variants Available Separately

• 24V, 20A, 480 W - RS stock no: 265- 5217


• 36V, 13.3A, 480 W - RS stock no: 265-5218


• 48V, 10A, 480 W - RS stock no: 265-5219

Applications

• Industrial control equipment


• Factory automation


• Mechanical and electrical equipment

RS PRO Datasheet
