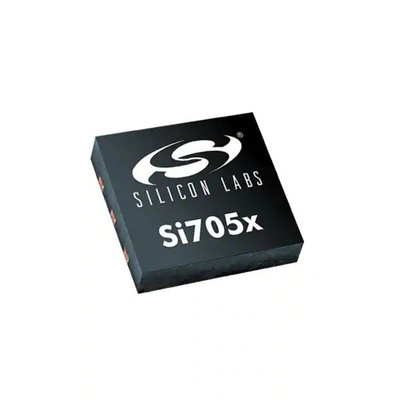

SI7055-A21-IM, Silicon Labs Temperature Sensor, Digital Output, Surface Mount, I2C, ± 0.5°C

The Silicon Labs digital temperature sensors offer industry-leading low power consumption and high accuracy across the entire operating voltage and temperature range. These monolithic CMOS ICs feature a band-gap temperature sensor element, an analog-to-digital converter with up to 14- bit resolution, signal processing, calibration data, and an I2C interface. The patented use of novel signal processing and analog design enables the sensors to maintain their accuracy over a wide temperature and voltage range, while consuming very little current. The temperature sensors are factory-calibrated and the calibration data is stored in the on-chip non-volatile memory. This ensures that the sensors are fully interchangeable, with no recalibration or software changes required.

Accuracy maintained over the entire operating temperature and voltage range
Low power consumption
195 nA average current at 1 Hz sample rate
14-bit resolution
Factory calibrated
I2C interface
3x3 mm DFN package

Datasheet - SI7055-A21-IM
