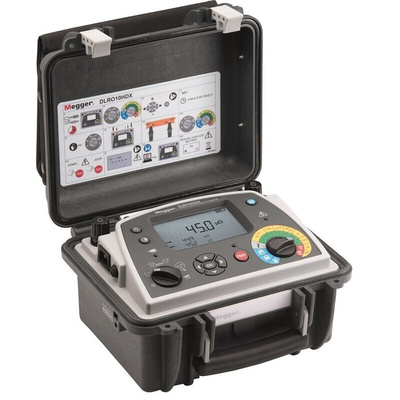

1008-047, Megger Ohmmeter, 2000 Ω Max, Current, Voltage

Megger Ohmmeter, 100μA to 10A Test Current Range, 100 to 240V Voltage Input Range - DLRO10 Series - 1008-047

When you want precision in your resistance measurements, turn to this ohmmeter from Megger. It delivers readings with an accuracy of ±0.2% ±50μΩ from 0 to 250mΩ and ±0.2% ±200mΩ from 10 to 2.5kΩ. The component has two rotary dials to quickly toggle between auto, continuous and conductive testing modes. Thanks to its broad operating temperature range of -10°C to +50°C, this device is ideal for applications in demanding industrial environments.

Features & Benefits

• IP54 rating shows it's partially dust-protected and resists water sprays from any direction
• Onboard storage for 200 test results, limiting the risk of costly data loss
• Backlit LCD with adjustable contrast for hassle-free reading, even in low-light conditions
• Compact size of 315 (L) x 285 (W) x 181mm (H) is easy to store and transport
• Automatic power-off function conserves energy

Applications

• Industrial automation
• Circuit building
• Domestic electrical systems
• Appliance repairs

What's the battery life of this unit?

This ohmmeter's battery lasts for more than 1000 auto-mode tests lasting three seconds each, so you get plenty of juice to tackle on-the-go testing jobs.

Contains SVHC - Lead - CAS No. 7439-92-1

Datasheet - 1008-047
