RS PRO 9-Contact Female Interface Module, RJ45 Connector, DIN Rail Mount, 1A

RS PRO RJ45 Interface Module for 35mm DIN Rail, 48V, 1A

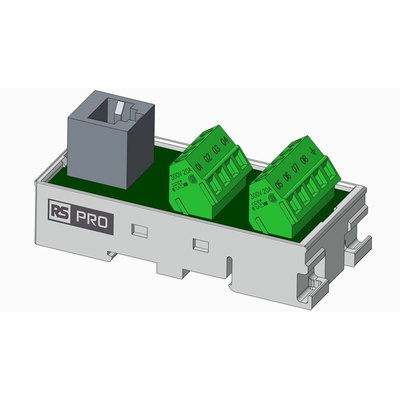

A 35mm DIN rail mount interface module featuring an RJ45 connector for the integration of electronic devices and components to industrial and electrical systems.
Built from robust plastic the RJ45 interface module consists of a straight RJ45 port for network or ethernet connection and 2 rows of M2.5 screw down terminals angled at 45° for unrestricted access and easy wire termination.
The 2 terminal blocks contain 4 and 5 contacts for a total of 9 contacts suitable for wire sizes 24 to 12AWG (0.14 – 2.5mm) with simple screw down termination. An easy to install and wire interface module suitable for use in a wide range of automation and control applications.

Features and Benefits

RJ45 interface module
35mm DIN rail mount
Voltage rating of 48Vdc
Current rating of 1A
1 x RJ45 port
9 x M.25 screw terminals
45° terminals for easy access.
Suitable for wire sizes 0.14 to 2.5 mm² (24-12 AWG).
6-7mm wire strip length
Dimensions 77.9 x 35.2 x 32mm
