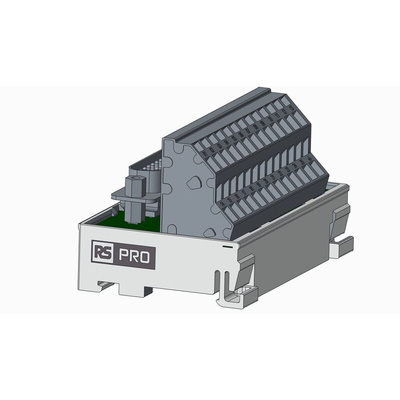

RS PRO 25-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1A

RS PRO 25 Way D-Sub Interface Module for 35mm DIN Rail, 125Vdc, 1A

A 35mm DIN rail mount interface module featuring a D-Sub connector for signal transmission and the integration of electronic devices and components to industrial and electrical systems.
Built from robust plastic the D-Sub interface module consists of a straight D-Sub socket with 25 contacts for signal transmission and 2 rows of spring clamp terminals enabling simple wire termination, perfect for I/O cable.
The 2 terminal blocks are suitable for wire sizes 28 to 12AWG (0.5 – 2.5mm) and the spring clamps enable a secure fit free from movement. An easy to install and wire signal interface module suitable for use in a wide range of automation and control applications.

Features and Benefits

D-Sub interface module
35mm DIN rail mount
Voltage rating of 125Vdc
Current rating of 1A
1 x D-Sub socket with 25 contacts
D-Sub shell linked to earth contact
2 x spring clamp terminal blocks
Suitable for wire sizes 0.5 to 2.5 mm² (28-12 AWG).
Dimensions 76 x 47.9 x 42.7mm
