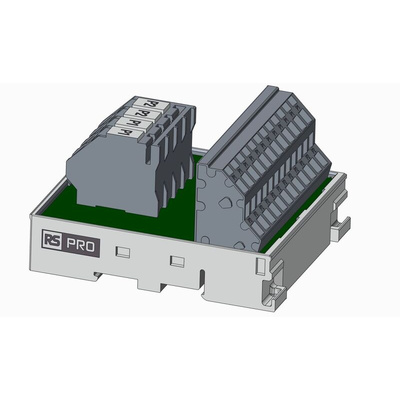

RS PRO 13-Contact Female Interface Module, Spring Clamp Connector, DIN Rail Mount, 32A

RS PRO 35mm DIN Rail Potential Rail Interface Module, 250Vdc

A 35mm DIN rail mount potential rail interface module with 2 potential rails and 13 contacts designed to distribute power across larger systems or to deliver the correct voltage levels to connected components and equipment enabling the simple integration of electronic devices and components to industrial and electrical systems.
Built from robust plastic the 13 contact rail module consists of 2 potential rail slots (each requiring 1 power terminal and 12 distribution terminals) marked P1 and P2 and a double terminal block with spring clamp terminals for a secure connection and simple wire termination.
The input terminals are suitable for wire sizes 24 to 10AWG (0.5 – 6mm) with output terminals accepting sizes 28-12AWG (0.5-2.5mm). An easy to install and wire potential rail module suitable for use in a wide range of automation and control applications.

Features and Benefits

Potential rail interface module
P1 and P2 rail slots
35mm DIN rail mount
Voltage rating of 250V (AC/DC)
Input current of 32A
Output current of 17A
13 contacts
Spring clamp terminals
Input wire size of 0.5 to 6mm (26 to 10AWG
Output wire size of 0.5 to 2.5mm (28 to 12AWG)
Dimensions 62.5 x 77.9 x 42.7mm

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
