iNEMO inertial module kit based on ISM330IS

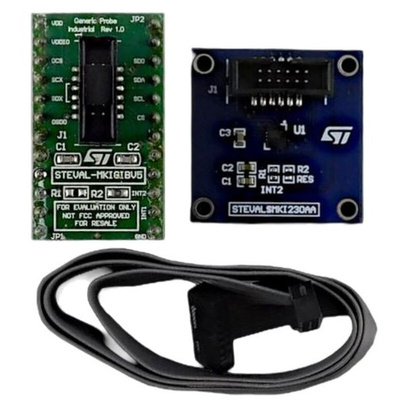

The STEVAL-MKI230KA evaluation kit consists of the STEVAL-MKI230A main sensing board, with a square PCB, which mounts the ISM330IS 3-axis accelerometer and 3-axis gyroscope with embedded ISPU, the STEVAL-MKIGIBV5 adapter board, and a flat cable. The main board is connected to the adapter board through the flat cable to make it compatible with the STEVAL-MKI109V3.
The sensing board can be directly attached to the system to be measured through the provided adhesive.
The ISM330IS is soldered exactly in the center of the board.
The STEVAL-MKIGIBV5 can be plugged into a standard DIL24 socket. The kit provides the complete ISM330IS pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico-GUI), or dedicated software routines for customized applications.

Key features

•User friendly ISM330IS board
•Complete ISM330IS pin-out for a standard DIL24 socket
•Fully compatible with the STEVAL-MKI109V3 motherboard
•RoHS compliant
