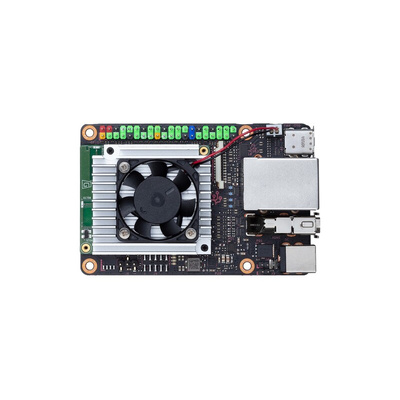

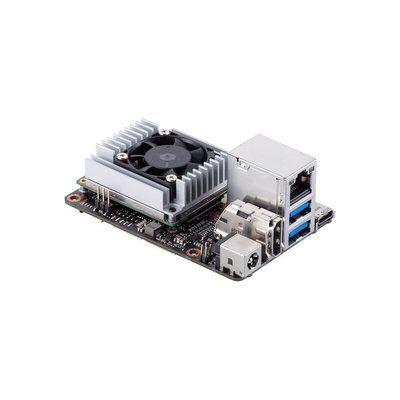

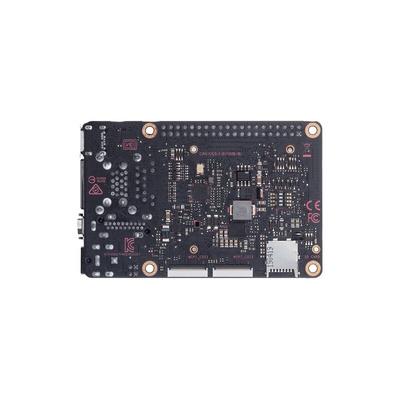

90ME0140-M0EAY0, Asus Tinker Edge T Single Board Computer

Tinker Edge T is a small and powerful Single Board Computer (SBC) from Asus that boasts a NXP i.MX 8M System-on-Chip, Quadcore ARM Cortex processor and integrated GC7000 Lite Graphics. It benefits from Google Edge TPU MLU accelerator coprocessor, a Neural Network Accelerator Processor (NPU) that runs Machine Learning (ML) inference in a high-efficiency manner, and the NPU is optimised for handling neural networks, bringing artificial intelligence (AI) from the cloud to local devices. It supports Linux Mendel OS.

Ultimate performance for edge devices

Tinker Edge T can perform up to 4 TOPS (tera-operations per second) with the built-in Edge TPU AI accelerator, using only 2 watts at maximum loading. The onboard NPU provides high-performance ML inferencing.
The Edge TPU is optimised for TensorFlow Lite models, meaning Tinker Edge T can run and easily compile common ML models. Tinker Edge T is highly efficient compared to desktop-grade x86 CPU, when performing inference across many popular models.

Powerful processor perfect for advanced applications

Tinker Edge T benefits from the incredible NXP i.MX 8M SoC, combined with a Quadcore Arm Cortex processor and Google Edge TPU Ml accelerator coprocessor, it's a powerful board that really packs a punch.

Advanced power design

Supports dual 12V∼19V wide-range DC-in
Power-protection design

More connectivity options for developers

Dual MIPI CSI for stereoscopic applications
Compatible with popular DSI touch panel

Enhanced Software Experience

Machine Learning Developer Tools
OS Flash Tool
Intuitive Interface

Technical Specifications

SoC: NXP i.MX 8M
CPU: Quad-core ARM Cortex-A53 @ 1.5GHz
GPU: Integrated GC70000 Lite Graphics
NN Processor: Google Edge TPU Coprocessor
Display: 1x HDMI up to 1080p/60Hz, *HDMI CEC Hardware Ready
Camera: 2x MIPI CSI-2 (4 lane)
Memory Size: LPDDR4 1GB
Storage: Onboard 8GB eMMC, 1x Micro SD (TF) Card Slot
Connectivity: 1x GB LAN
USB: 2x USB 3.2 Gen1 Ports, 1x USB-C OTG Port
Internal Headers: 1x 40-pin GPIO Header, 1x 2-pin Reset-Button Header
Power Connector:12V∼19V DC-in
OS Support: Linux Mendel
Dimensions: 85 x 56mm

Datasheet - 90ME0140-M0EAY0
