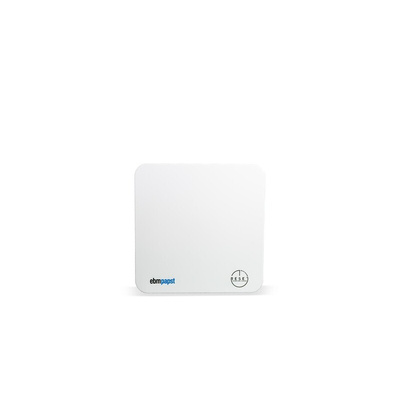

ebm-papst 8350000147 Data Logging Air Quality Monitor for CO2, Humidity, PM 2.5, Temperature, TVOC, RESET Viral Index,

Notification when air quality becomes unhealthy

Includes RESET Viral Index App and associated dashboard

Will help identify poor ventilation

Out of the box solution, no specialist knowledge necessary

Access to your data via a smartphone App

Non intrusive design

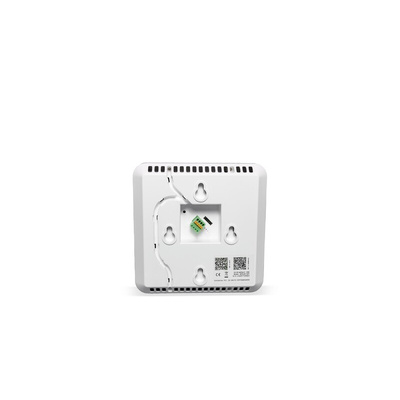

Fixed mounting holes for easy wall installation

Wi-Fi 2.4 GHz supported

Communication protocol Modbus

Customisable coloured LED bar

Supply voltage: 100∼240VAC, 50/60Hz

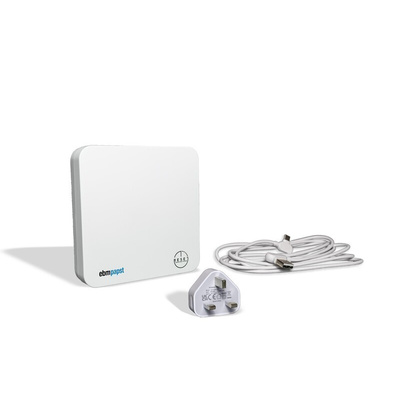

Includes UK plug-head power supply adapter

Input 12-32V DC (optional: 5V DC over supplied USB-C Power Supply)

Ambient operating temperature range: 0° to 50°C

Enclosure Colour Signal White RAL 9003

Enclosure Material ASA Plastic (PW-957 Kibilac)

Certifications RESETTM Air, FCC, CE, RoHS, WEEE

IP20 rated

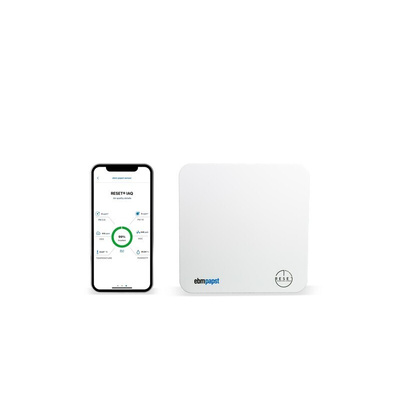

ebm-papst IAQ Connect APP
IAQ connect is the indoor air quality monitoring app from ebm-papst. This app provides the complete real time and historic data of air quality parameters including CO2, temperature, PM2.5, PM10, Relative Humidity, TVOC’s & Reset Viral Index (RVI). RVI is the index from RESET standard and this is the means to quantify the building's air quality with respect to airborne pathogen transmission.

Applications

Air quality monitoring for offices, education sector, health sector.

For use in indoor environments, the sensor is not waterproof or protected against condensation.

Datasheet - 8350000147
