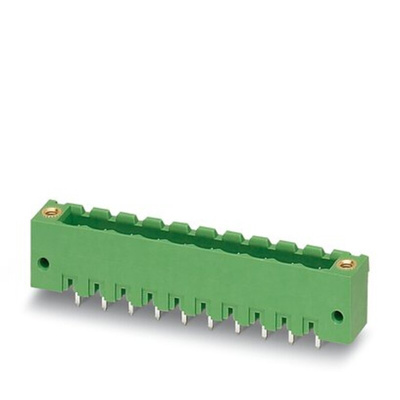

1777109, Phoenix Contact PCB Header

Phoenix Contact COMBICON MSTBV 2,5 Series 5.08 mm Terminal Block Header with Flanges

COMBICON MSTBV 2,5 Series 5.08 mm pitch terminal block headers which form part of a two-part pluggable terminal block system when used with terminal block plug connectors. These PCB headers offer design flexibility as they will mate with a range of plugs that have different connection types. The vertical connection orientation enables space saving multiple row mounting on the PCB. Screw flanges on either side of the headers provide a secure connection to the mating plug.

Features and Benefits

• Mate with wide range of plugs offering design flexibility
• Vertical orientation for PCB space saving
• Screw flanges for secure mating connection

The Phoenix Contact PCB header has rated voltage 320 V, 12 A nominal current and tin contact surface, wave soldering mounting with green color.

Linear pinning
Threaded mounting flange
Copper alloy contact material

Datasheet - 1777109
