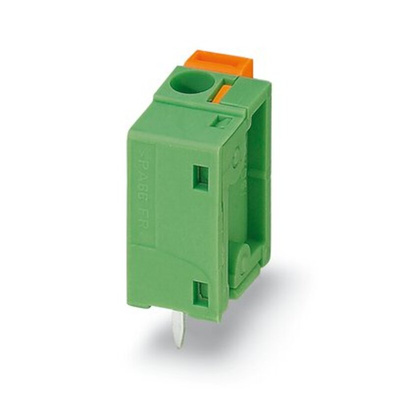

1790490, Phoenix Contact PCB Terminal Block, 7.62mm Pitch, Through Hole Mount, 1-Row

Phoenix Contact COMBICON FFKDSA 5.08mm PCB Terminal Blocks

COMBICON FFKDS series 5.08mm pitch vertical mounting PCB terminal blocks with a push-in spring cage connection for 0.2 - 1.5mm² solid or stranded conductors with ferrules. Stranded conductors without ferrules are connected by opening the terminal point with an orange interlocking side lever. Double solder pins are used for secure mounting on the PCB.
Stock number 804-2847 is an end terminal block with a 7.62mm pitch
For marker cards (5.08mm pitch versions) see stock numbers 804-0961, 437-3598 and 437-3605
For crimp tool see stock number 803-4405

The Phoenix Contact PCB terminal block has one row and 1 positions with green color.

Tin plated surface
Copper alloy contact material

Approvals

UL (E60425); CSA (LR13631)

Datasheet - 1790490
