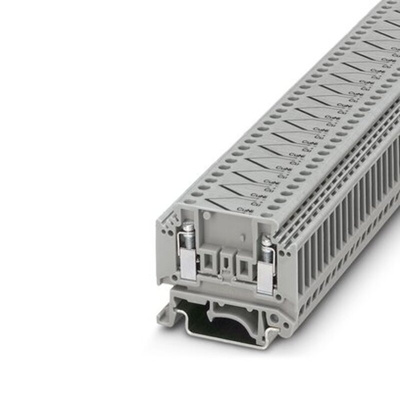

3100091, Phoenix Contact Grey Thermoelectric Voltage Terminal Block Pair, 4-Level, Screw Termination

MTKD Thermoelectric Voltage Terminal Blocks

These special terminal blocks are used to extend thermocouple equalising conductors in corresponding measuring circuits
The equalising conductors are made of materials which, up to temperatures of 200°C have the same thermal characteristics as the corresponding thermocouples
This ensures that no false thermoelectric voltages result at the junctions of the thermocouple/terminal block/equalising conductor and that the basic values according to EN 60584/DIN EN 60584 are adhered to

The Phoenix Contact thermoelectric voltage terminal block pair are used to extend thermocouple equalizing conductors in corresponding measuring circuits. The equalizing conductors are made from materials which, up to temperatures of 200°C, have the same thermal characteristics as the corresponding thermocouples.

PA insulating material
Screw connection method

MTKD/UDMTK Series

Datasheet - 3100091
